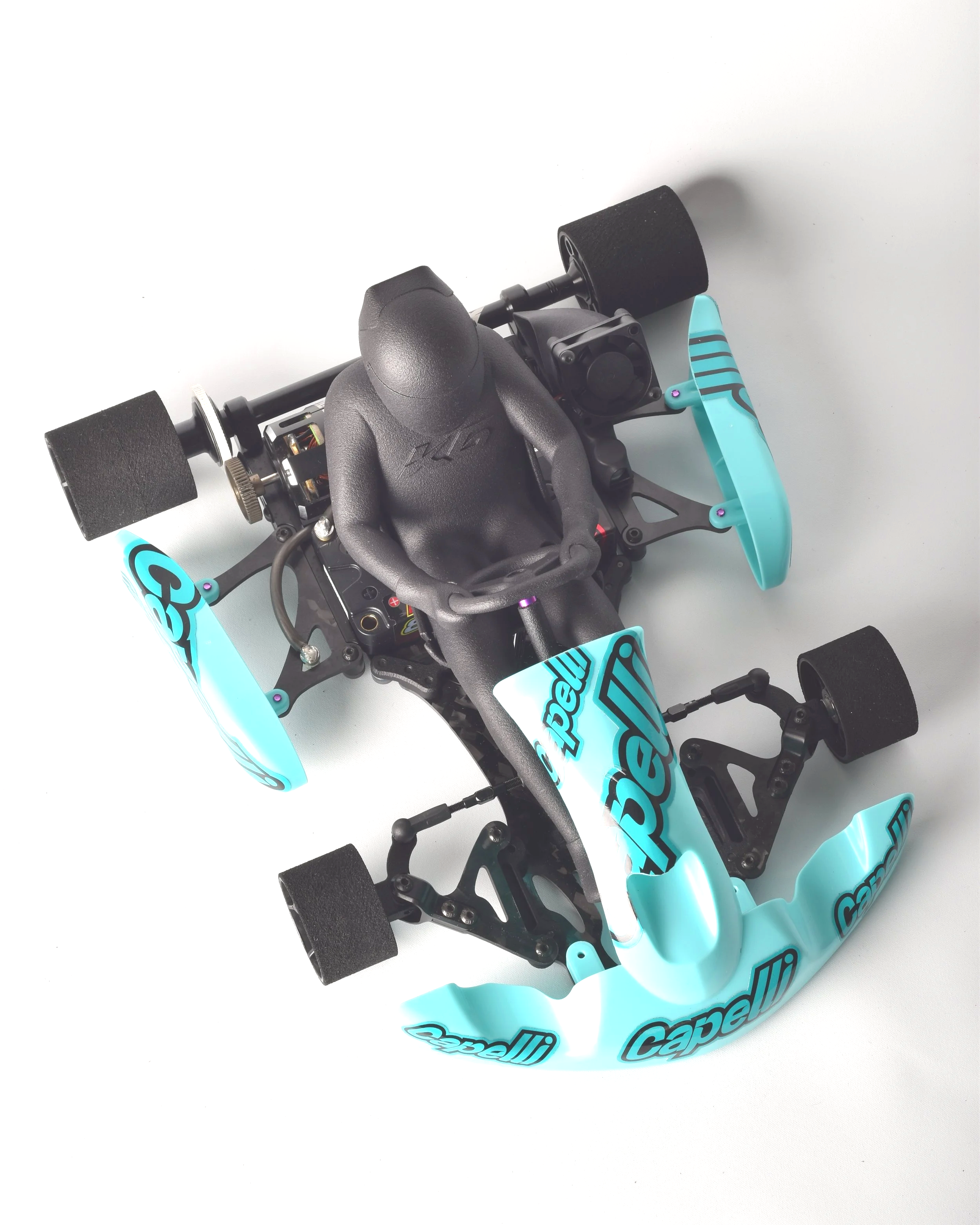

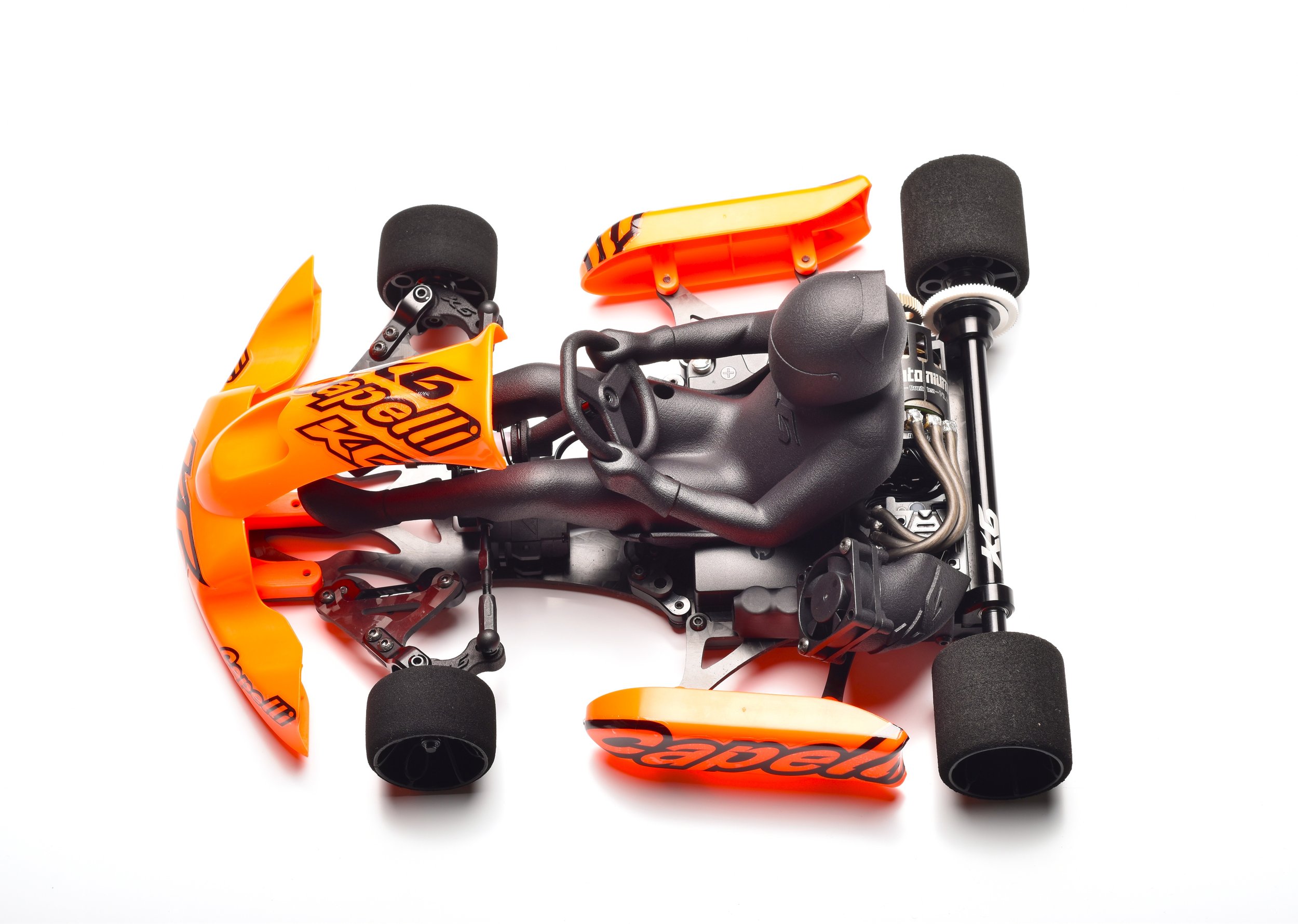

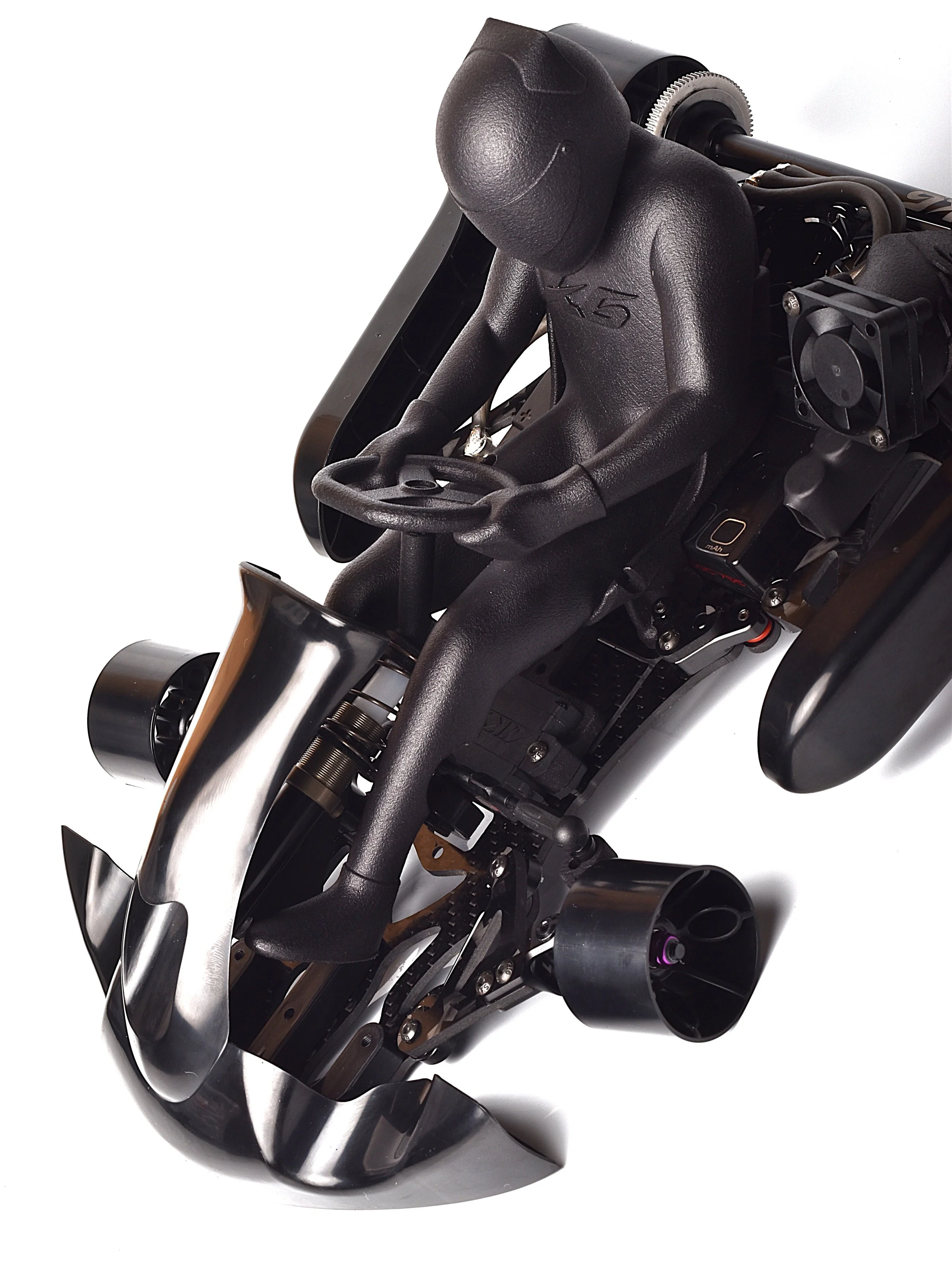

K6 PRODUCT OVERVIEW [CLICK HERE]

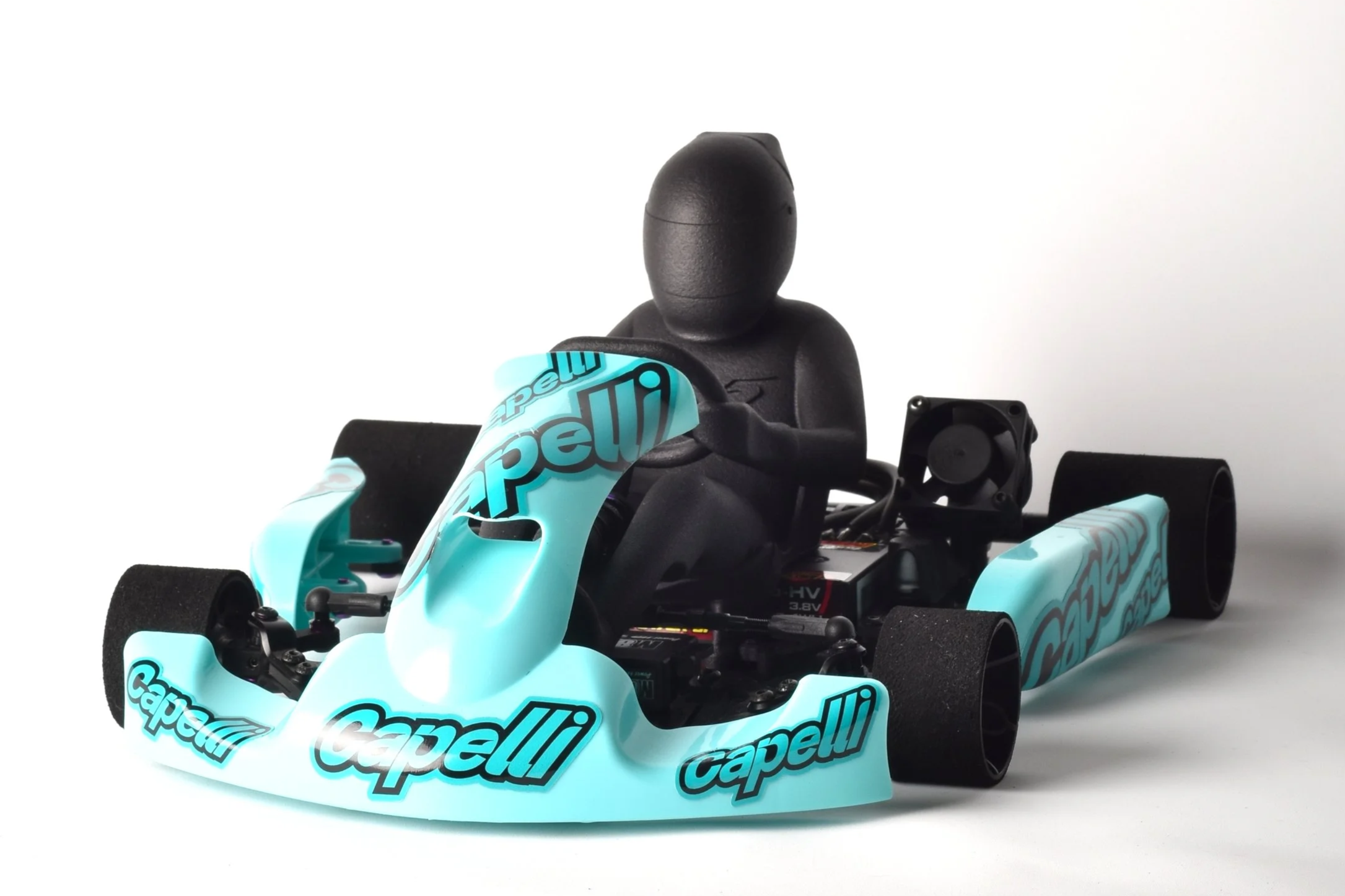

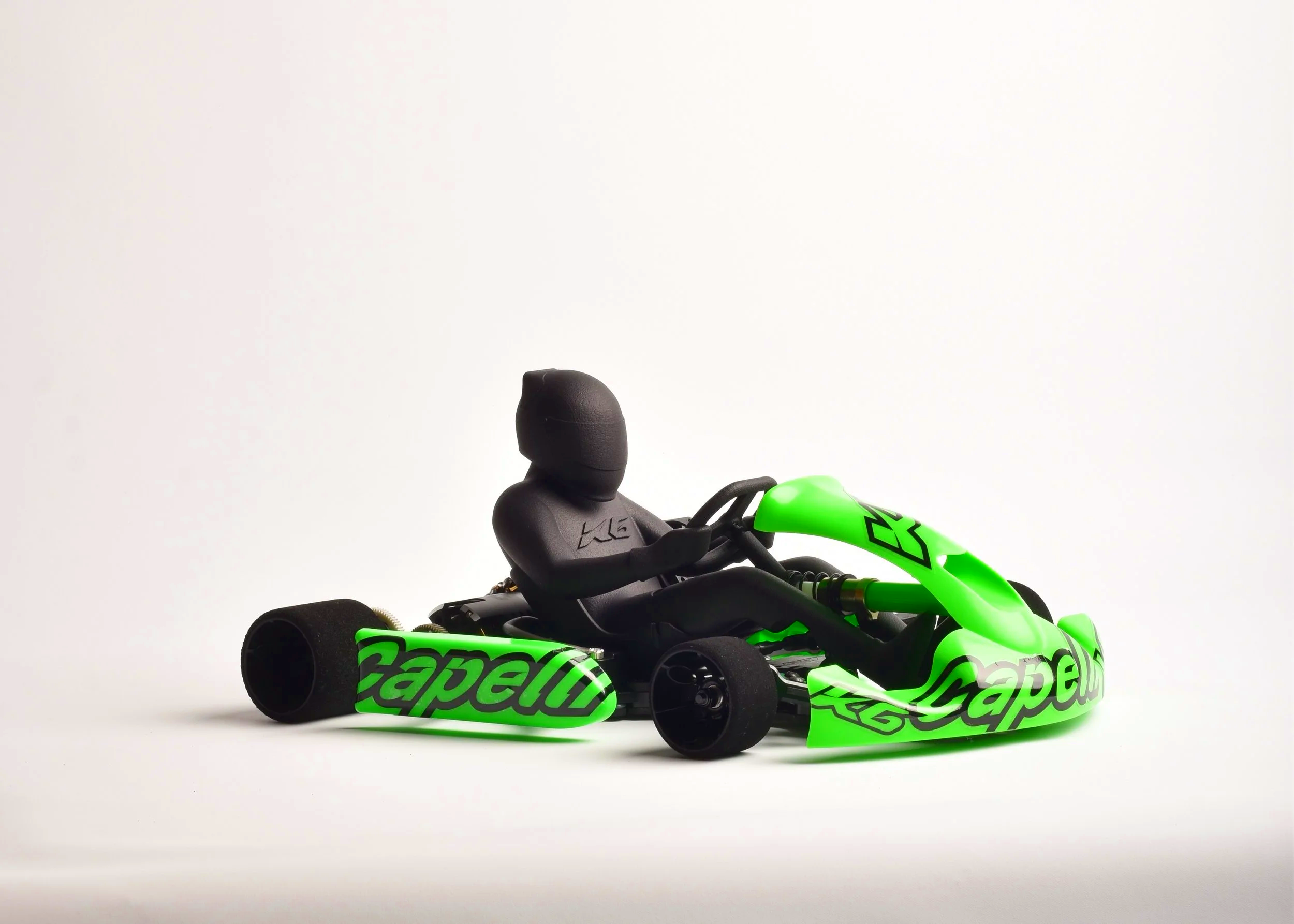

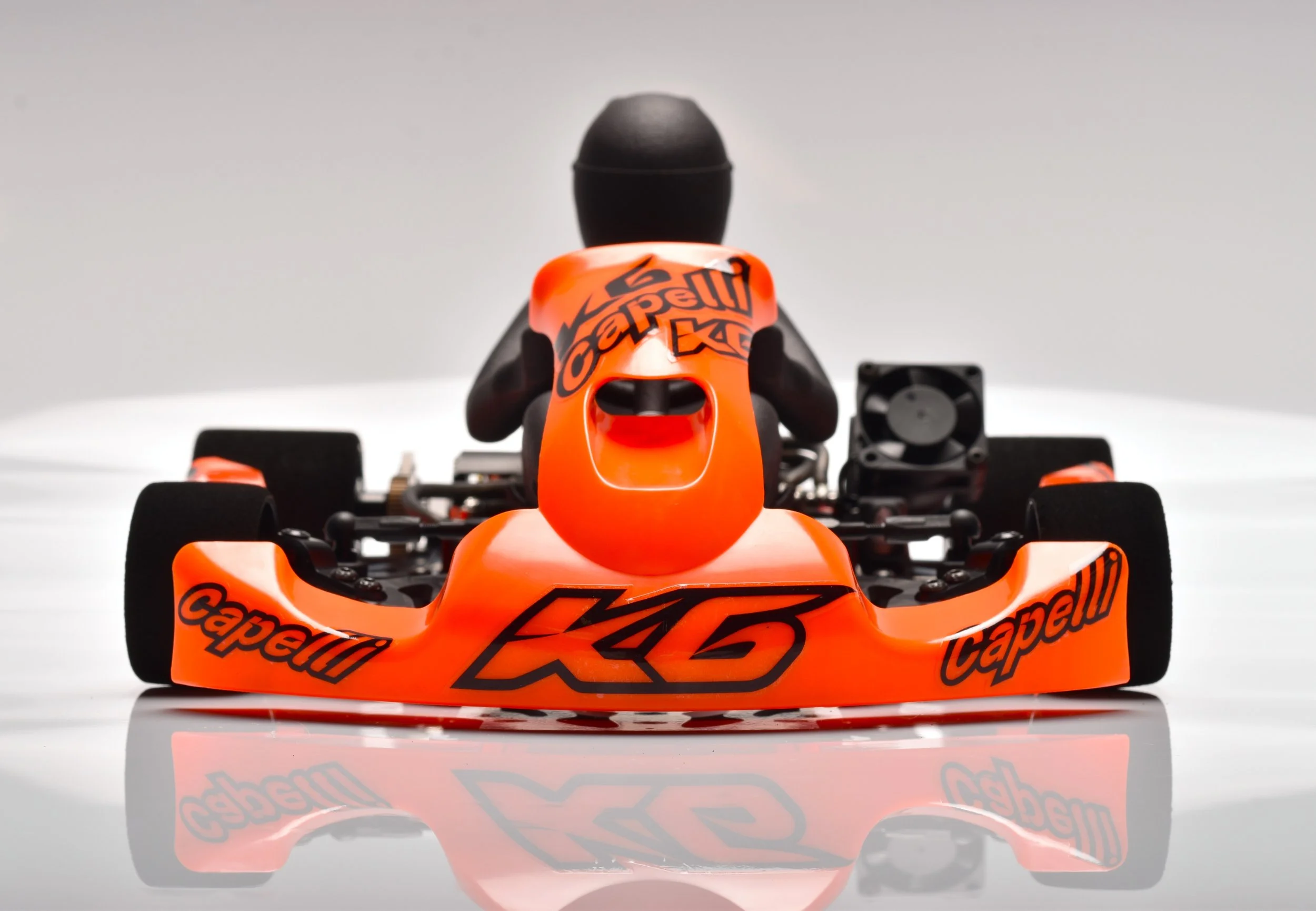

The K6 Venturi Fairing set is available in a range of colours: Black, Green, Neon Yellow, Orange, Pink, Teal and White
Please select colour from available options

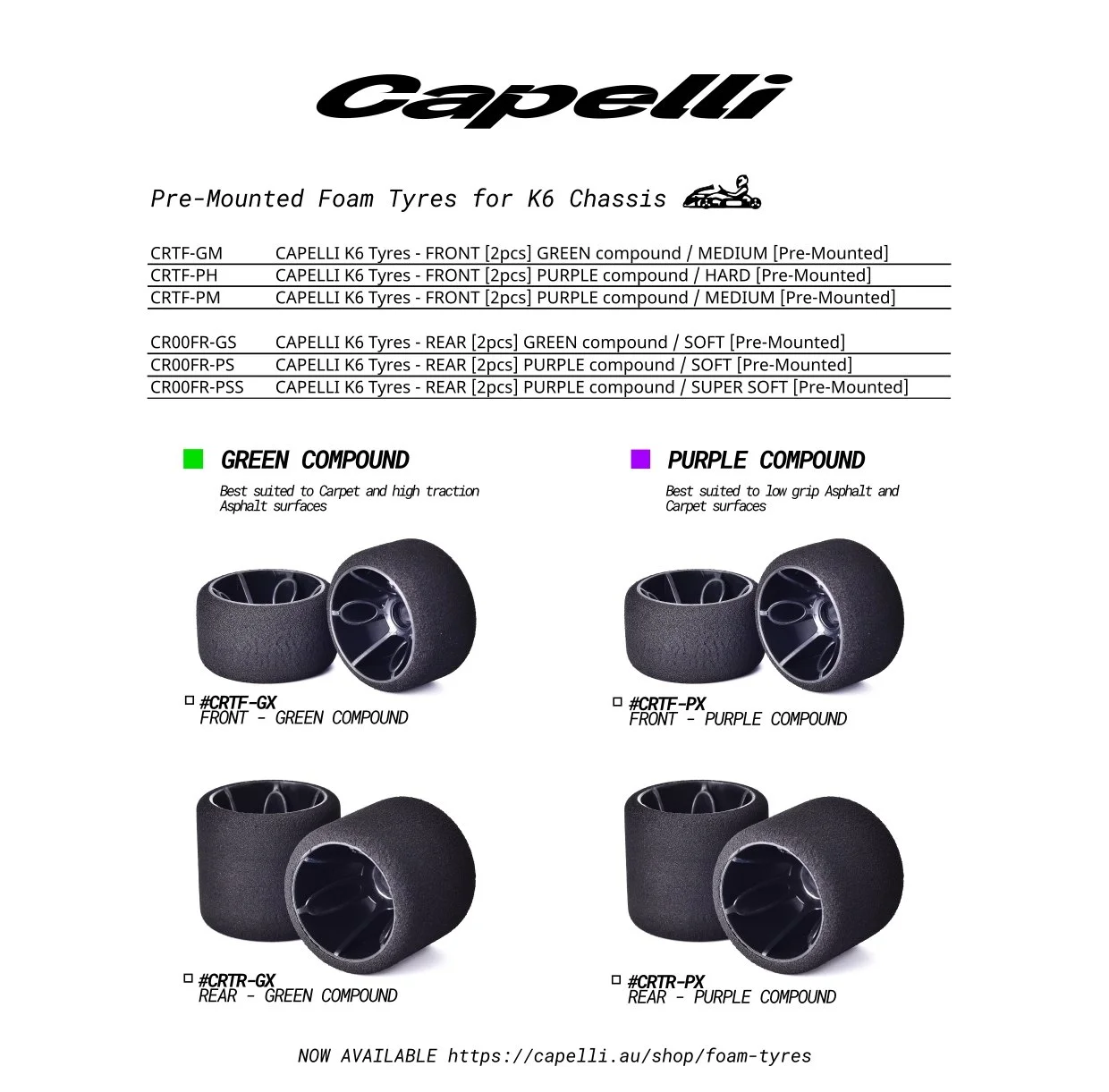

Included [x1 set] CAPELLI FOAM Tyres:

#CR00FF-PH / Purple HARD (PRE-TRUED)
#CR00FR-PSS / Purple SUPER SOFT (PRE-TRUED)

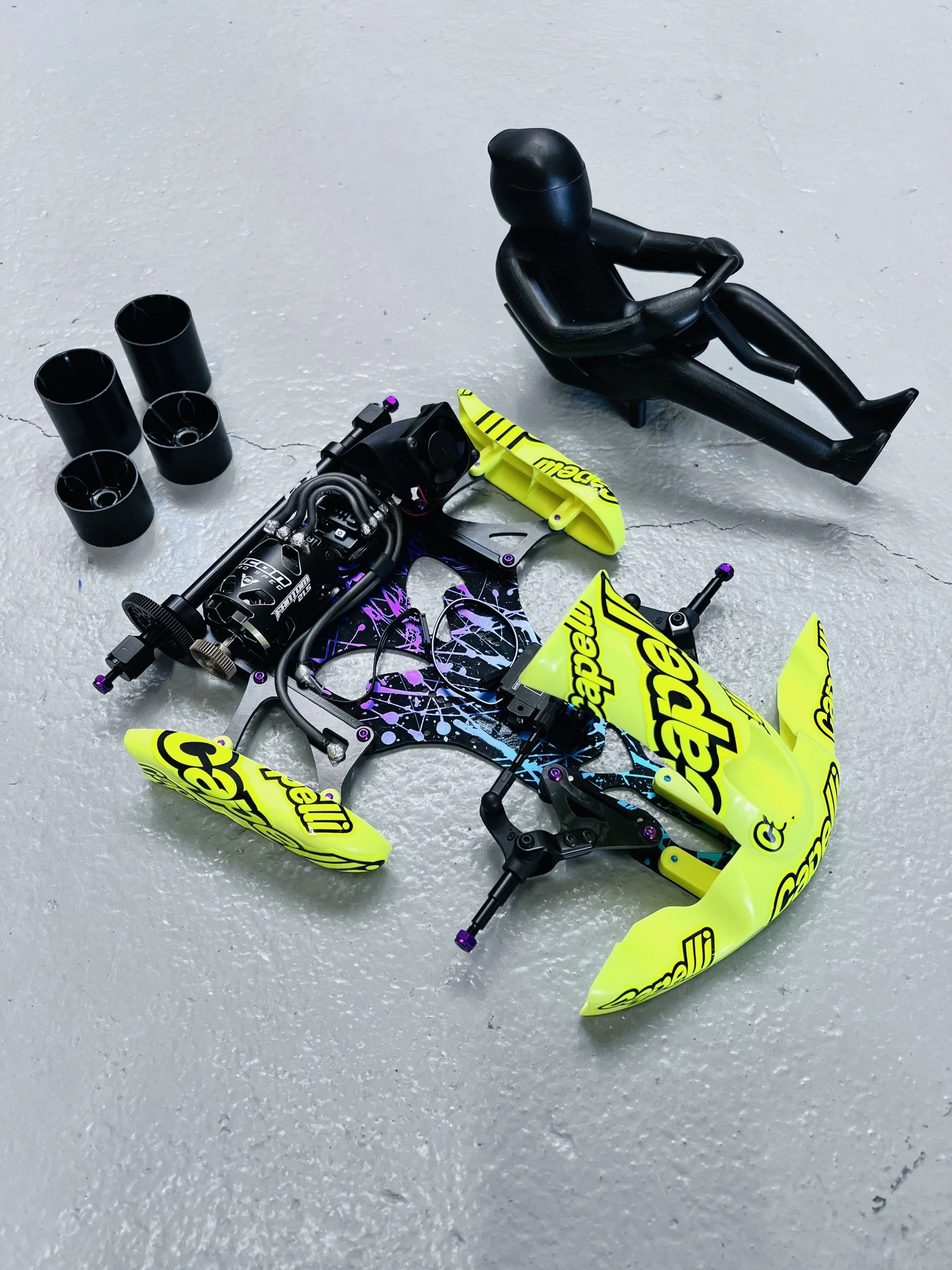

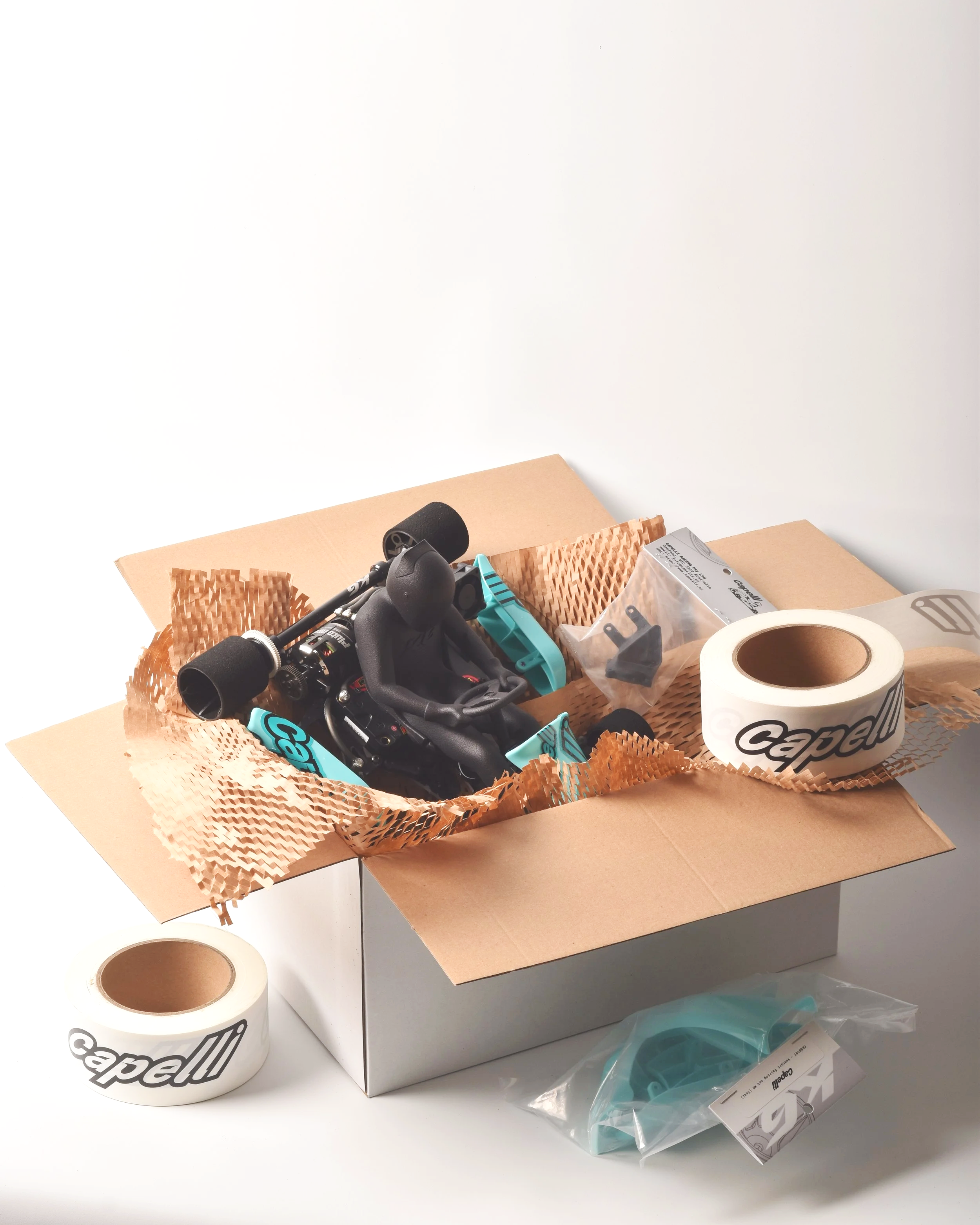

This is a ‘rolling chassis’ kit. The following items are essential for the kart to operate:

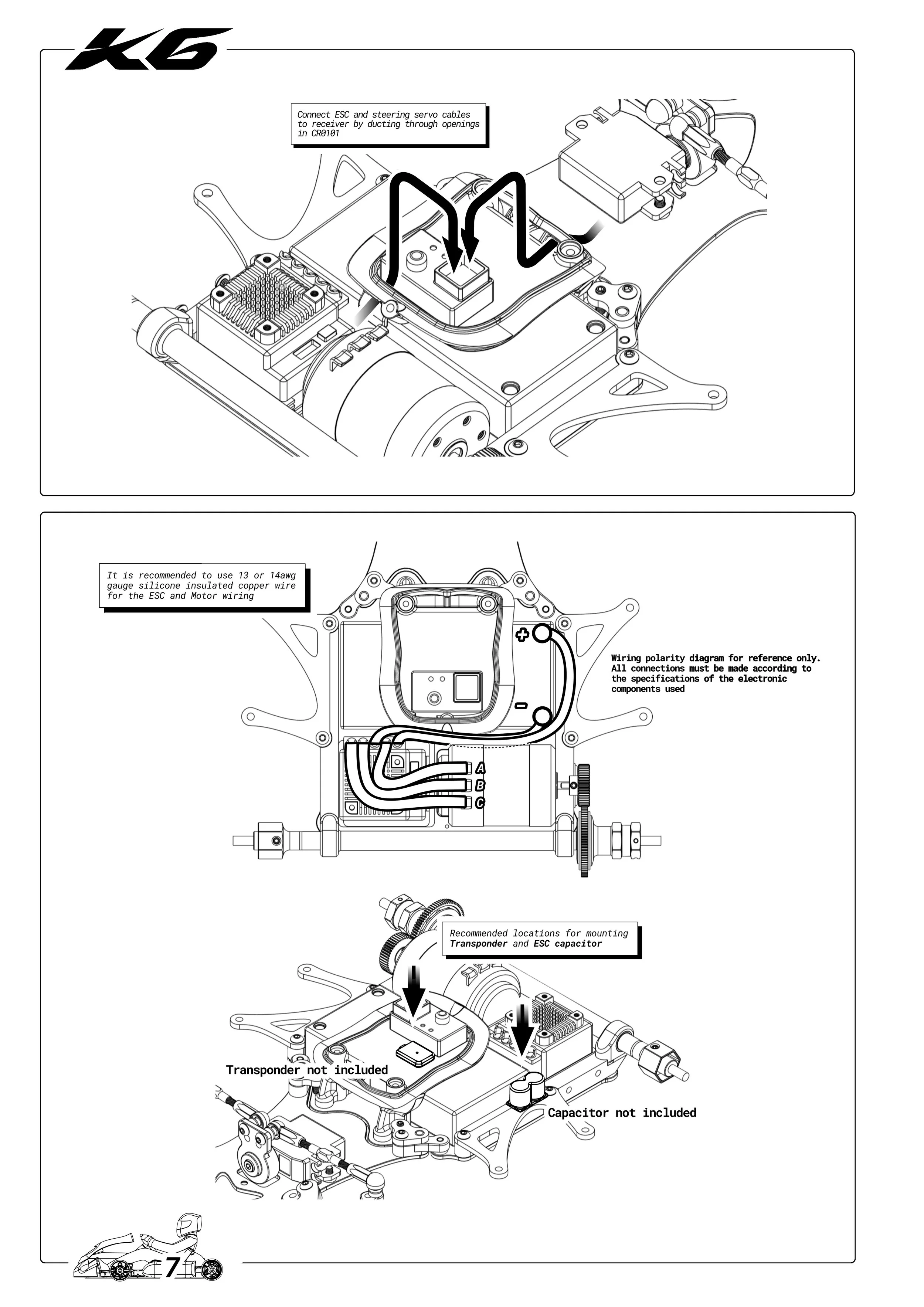

Required Electronics & Running Gear

• 64 Pitch (64P) Spur Gear - Compatible with your chosen final drive ratio.

• 64 Pitch (64P) Pinion Gear - Select tooth count to suit track conditions and motor setup.

• 540 Size Electric Motor - Standard 540 can motor or brushless equivalent.

• Micro Servo (Chassis Mount Type) - Ensure compatibility with chassis servo mounting points.

• 2-Channel Radio System - Includes transmitter and receiver.

• LiPo Battery (Shorty Type) - 1s or 2s Designed to fit the chassis battery tray.

• Compatible ESC (with Blinky Function) - 1s or 2s for regulated racing classes where applicable.

• 30mm Cooling Fan (for ESC) - Recommended to maintain safe ESC operating temperatures.

Assembly Consumables

• Double-Sided Tape - For mounting electronics securely.

• Silicone Damper Oil - For damper performance tuning.

• Silicone Differential Grease - Ensures smooth ball differential operation.

• Foam Tyre Glue - For securing tyres to rims.

• Molybdenum Grease (for Thrust Bearing) - Reduces wear and improves bearing performance.

• Low-Strength Threadlock - Required for metal-to-metal screws to prevent loosening.

Setup & Tyre Preparation Equipment

• Tyre Truer - For precise tyre diameter and surface preparation.

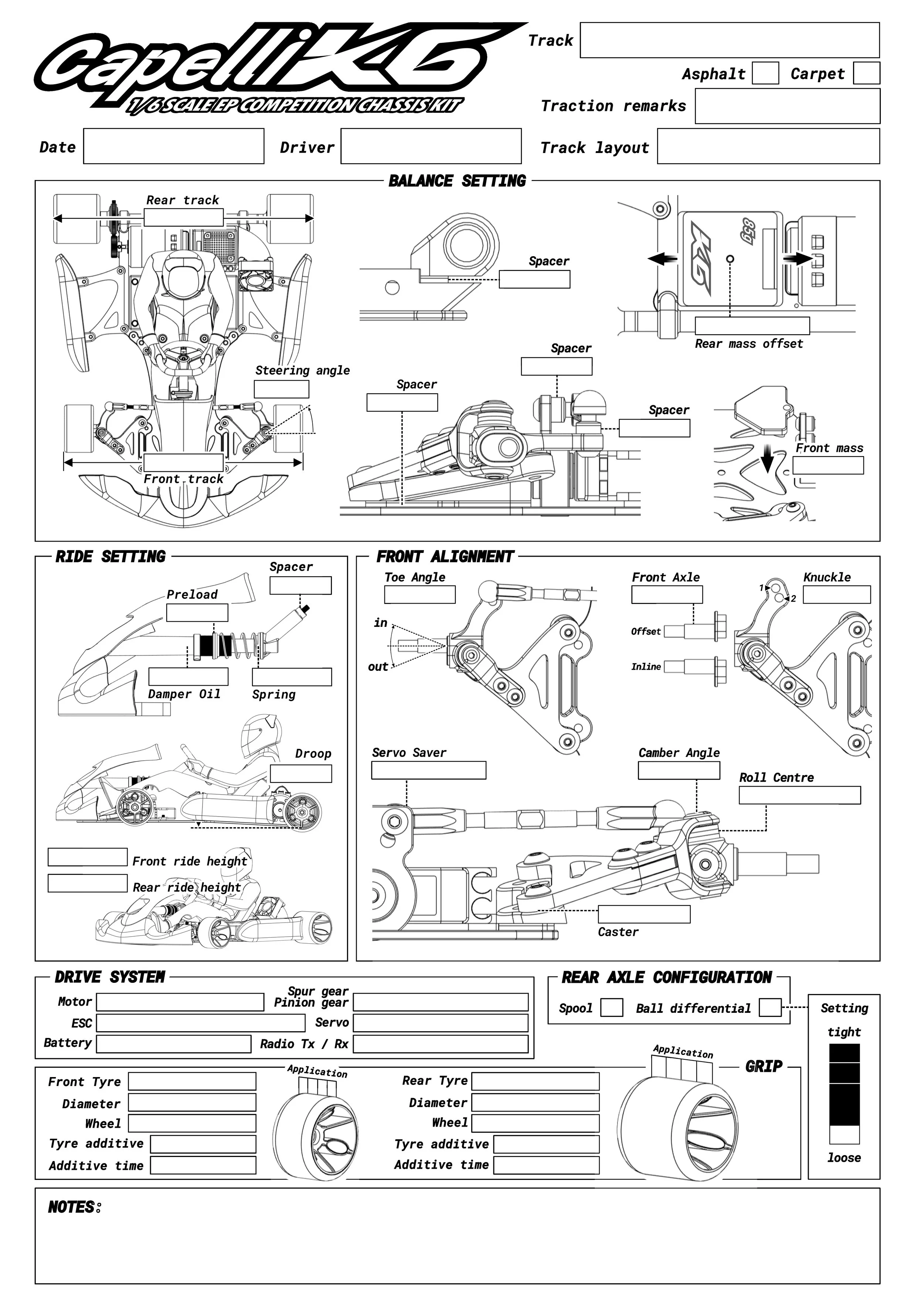

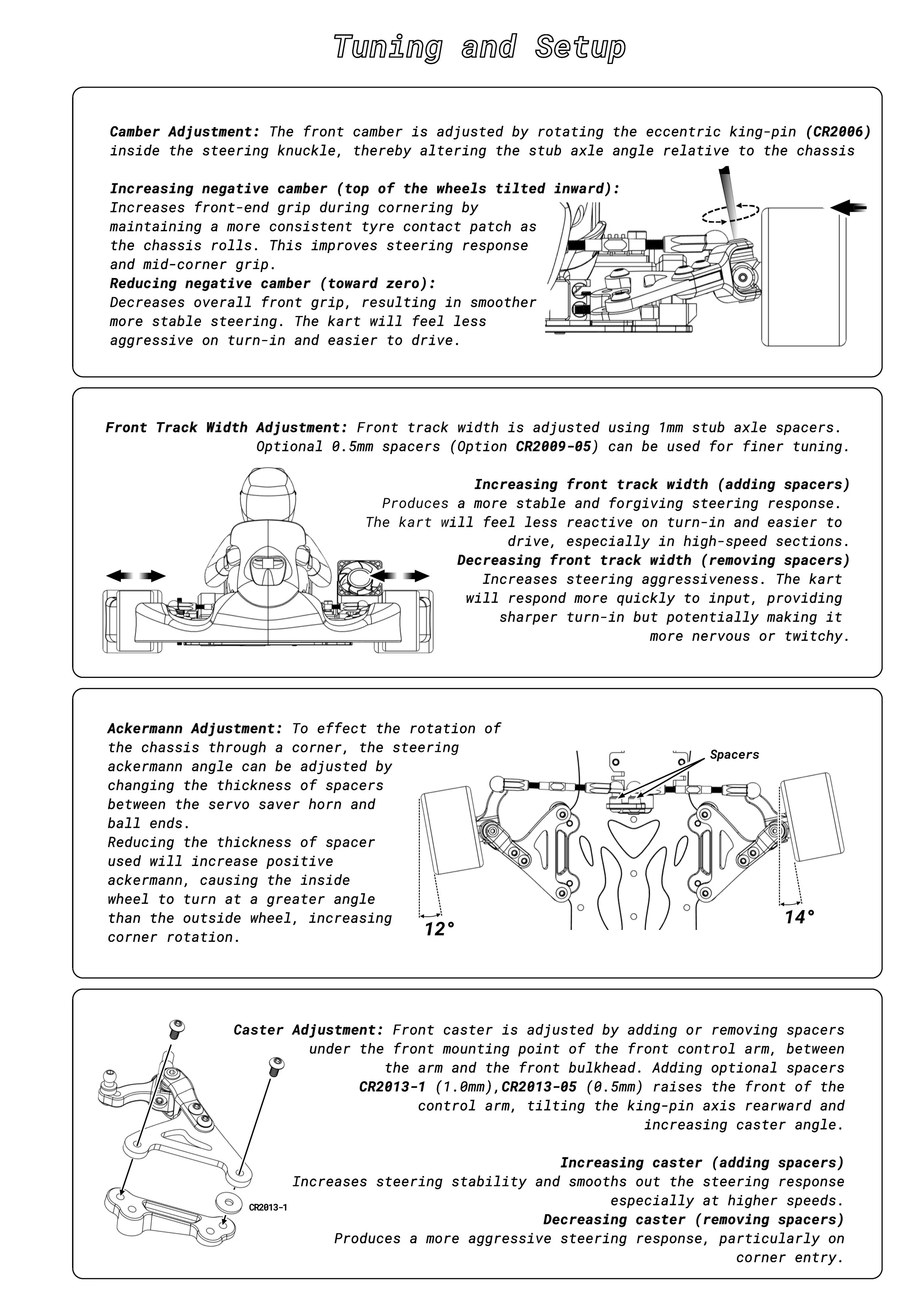

• Set-Up Station (1/10 chassis type) - Essential for accurate suspension geometry setup (camber, caster & toe)

• Straight Edge Device - Useful for chassis tweak and alignment checks.
