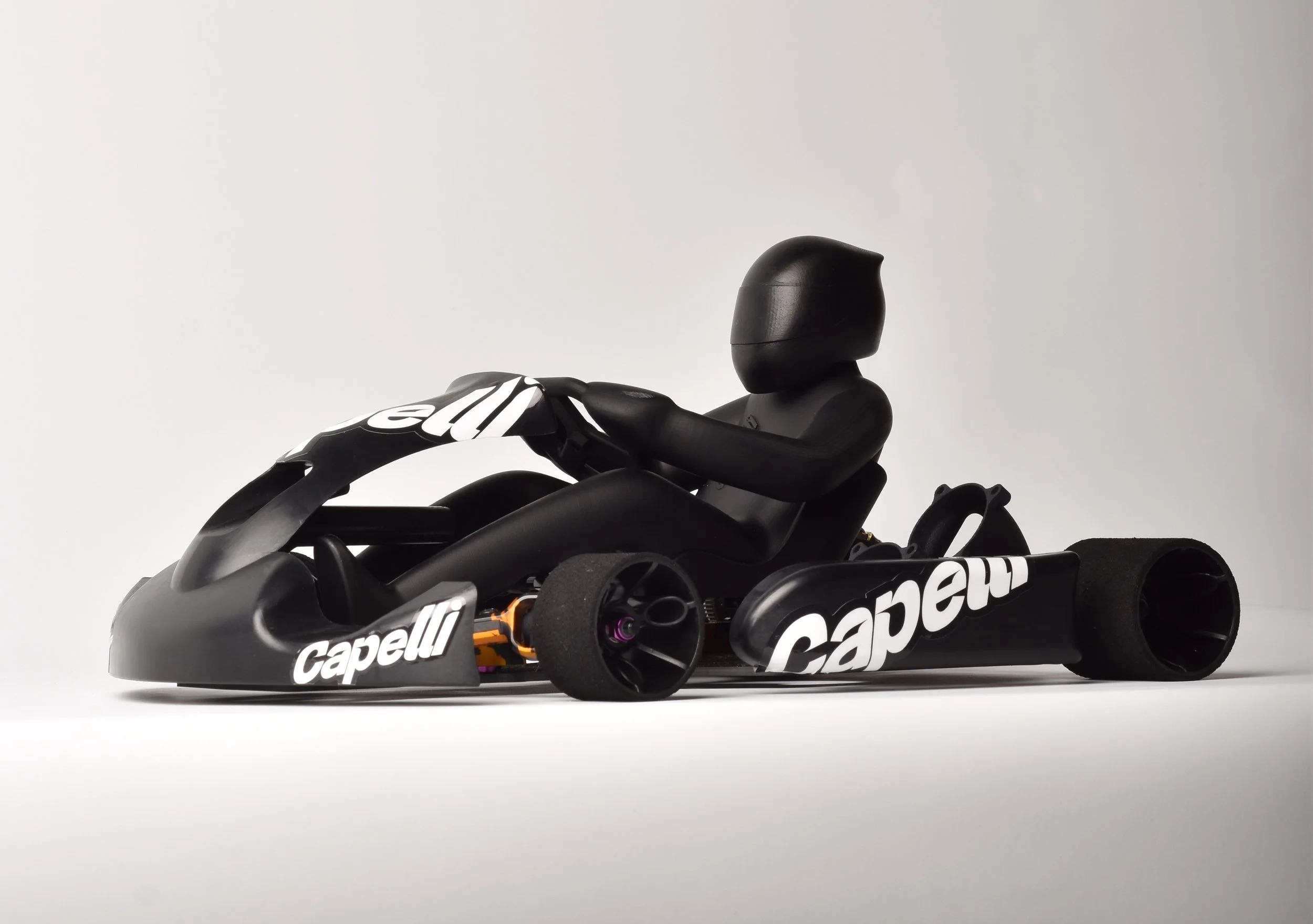

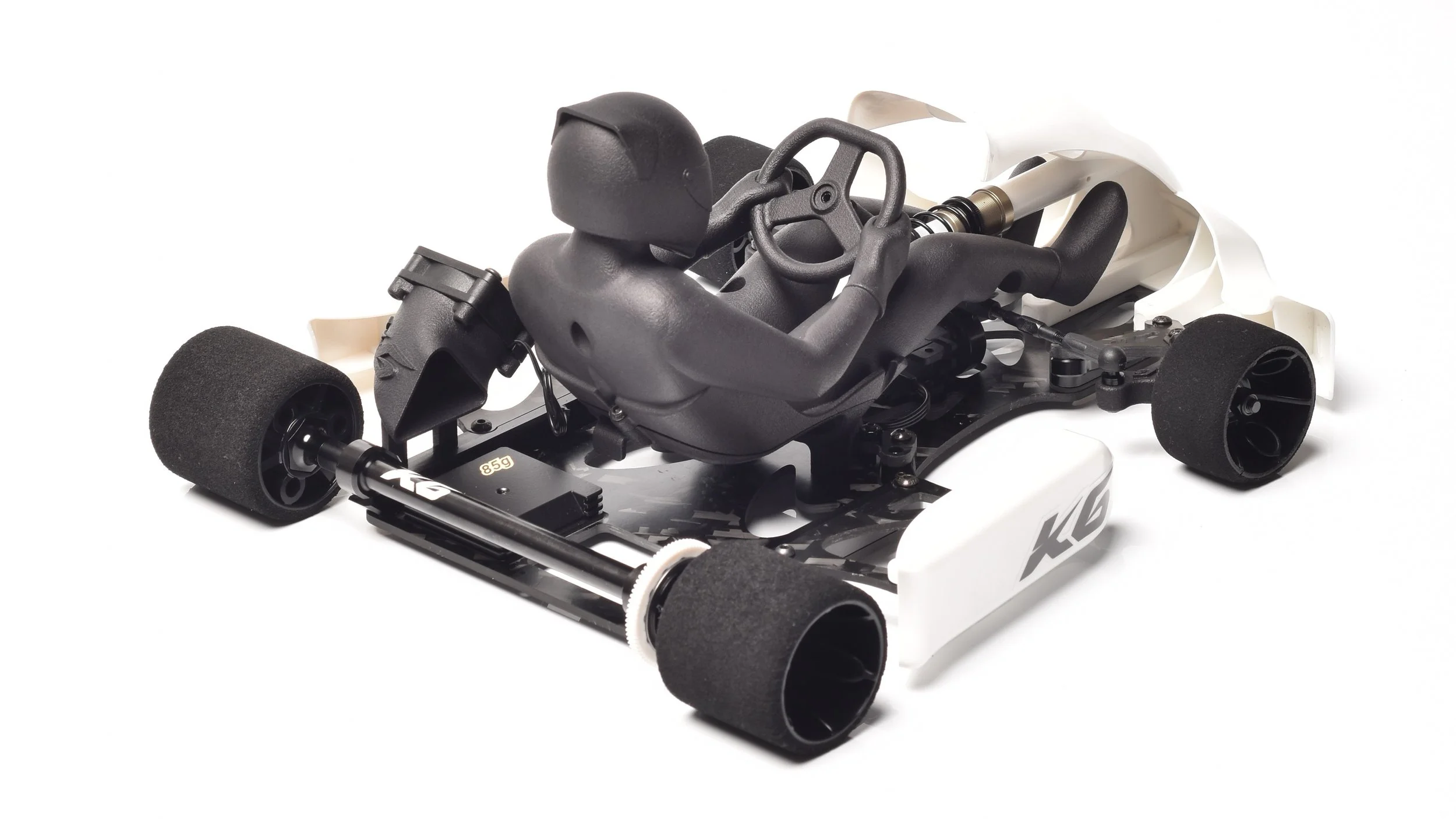

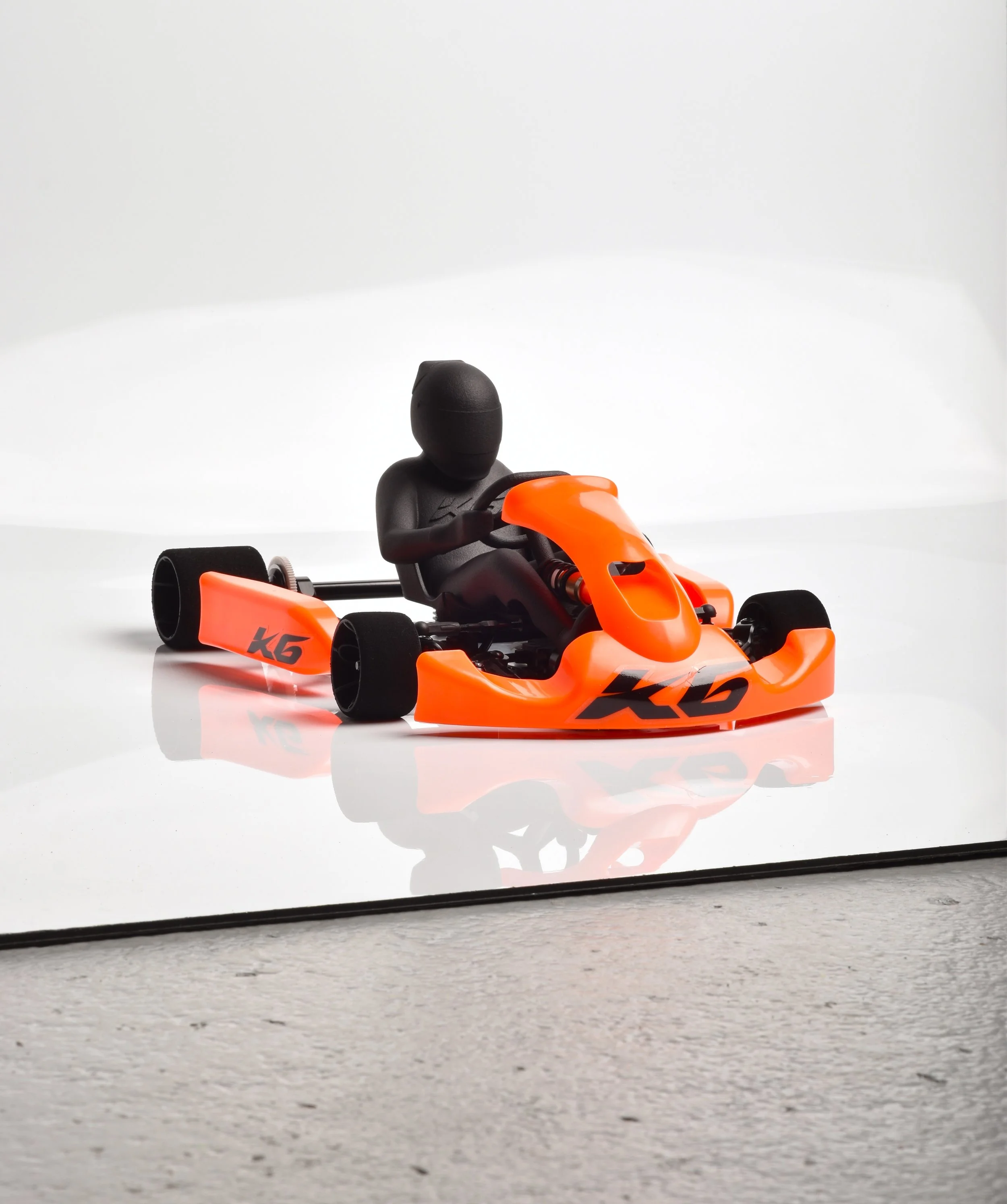

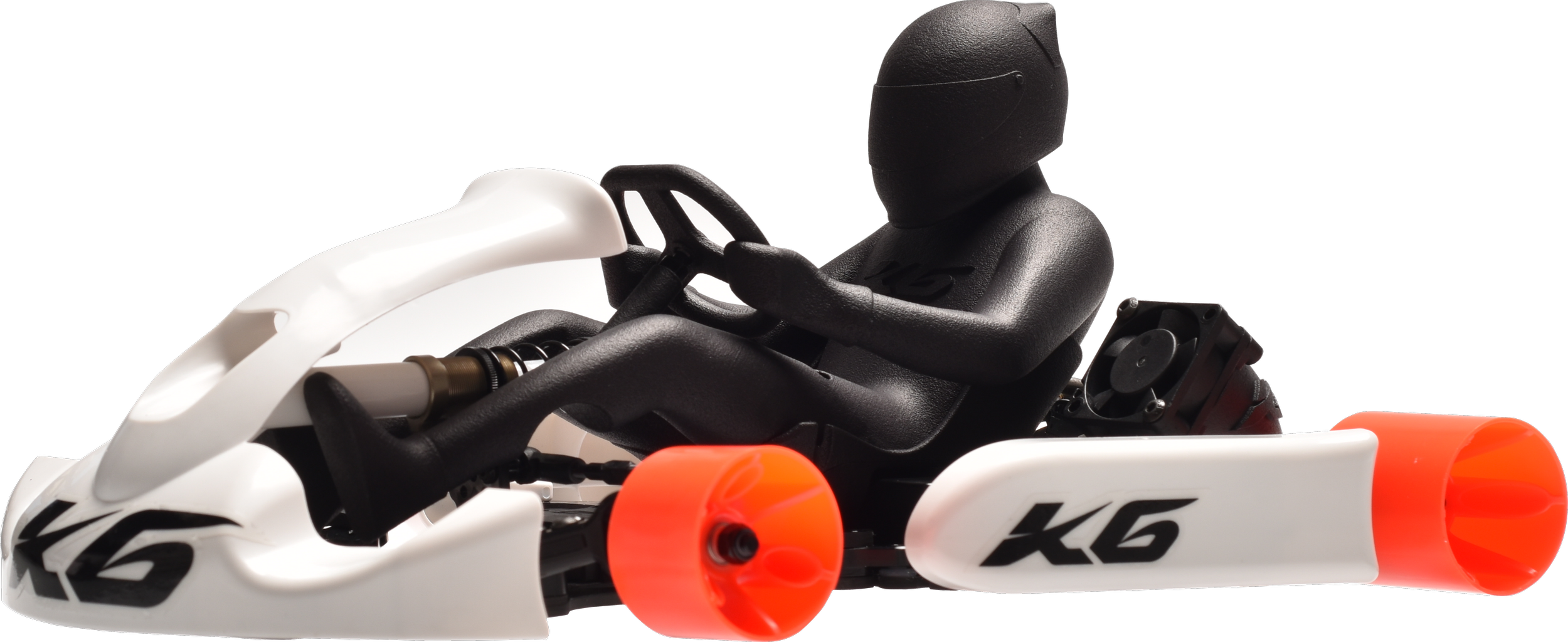

The Capelli K6 is a 1:6 scale electric competition kart chassis, inspired by the latest generation of KZ racing karts. Designed from the ground up for competitive R/C racing, it combines authentic kart styling with a lightweight pan car derived chassis platform to deliver the direct steering, low centre of gravity, and agile handling that karting is known for.
Sometimes, different is exactly what club racing needs.
RELEASES JULY 30
RELEASES JULY 30

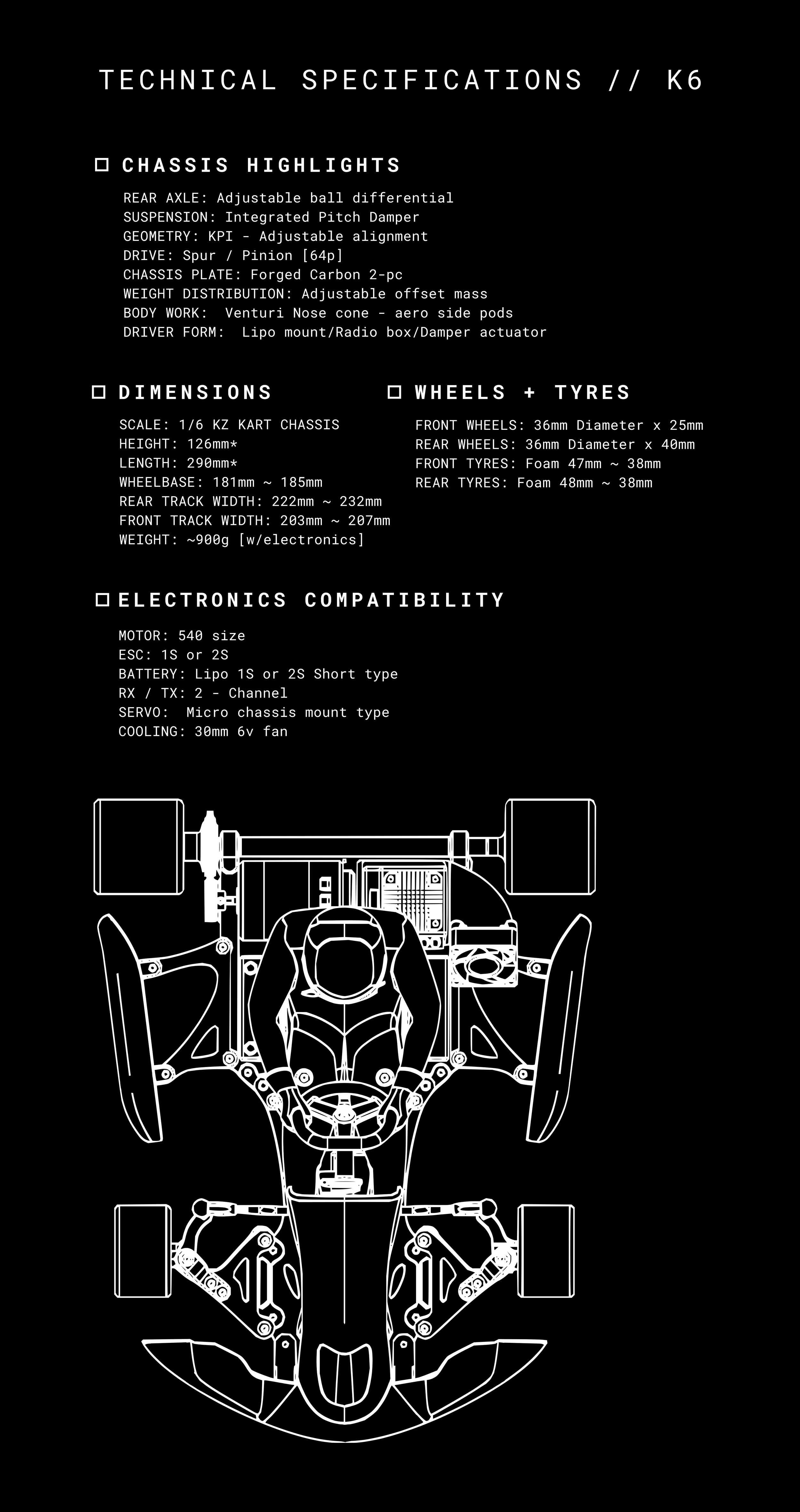

SCALE: 1/6 KZ Kart chassis
WHEELBASE: 181mm ~ 185mm
REAR TRACK WIDTH: 222mm ~ 232mm
FRONT TRACK WIDTH: 203mm ~ 207mm
WEIGHT: ~900g [w/electronics]
ELECTRONICS: 540 motor, 1S or 2S compatibility
FRONT WHEELS: 36mm Diameter x 25mm
REAR WHEELS: 36mm Diameter x 40mm
FRONT TYRES: Foam 47mm ~ 38mm
REAR TYRES: Foam 48mm ~ 38mm

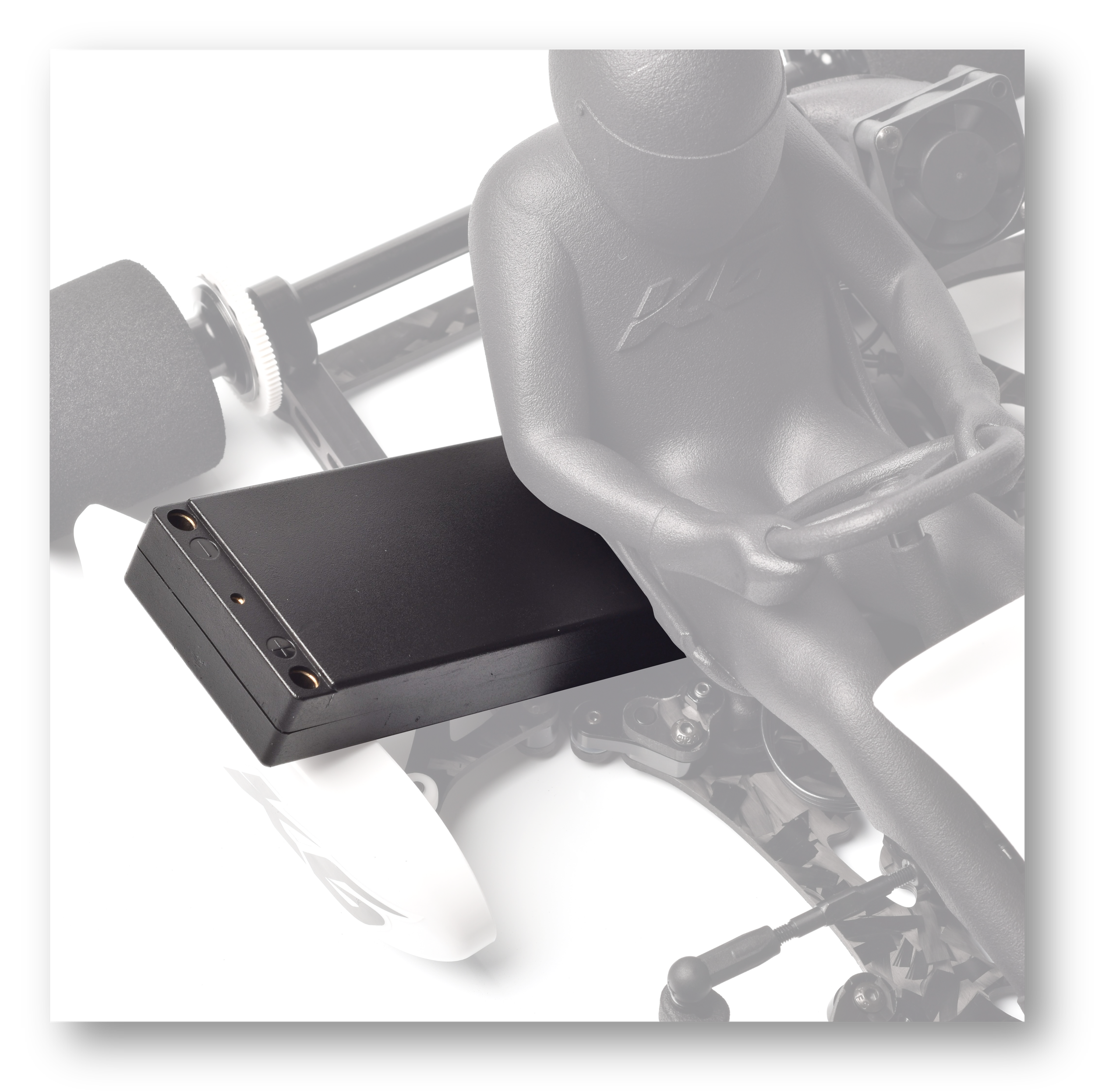

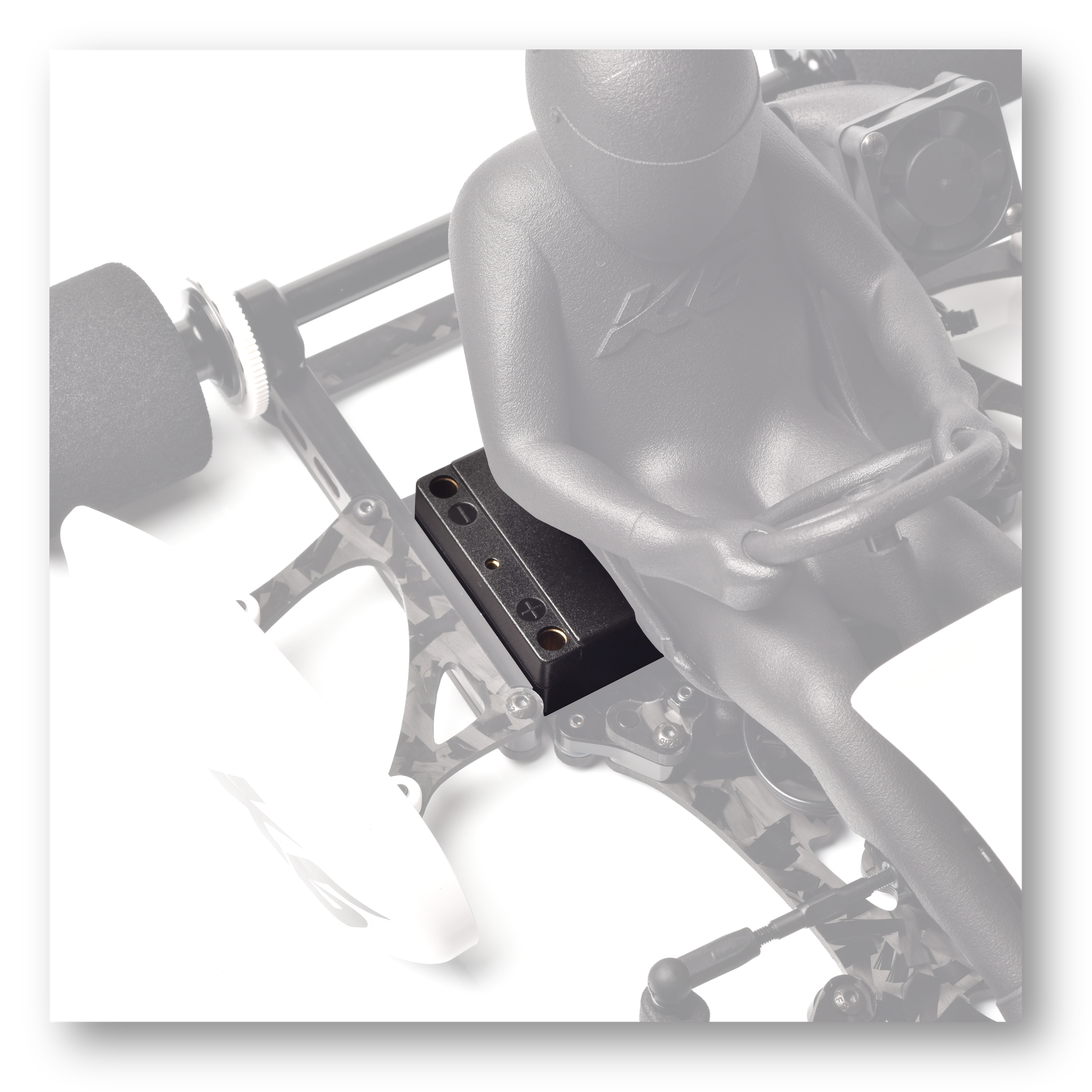

Replacing the LiPo battery pack is extremely quick and easy. Partially loosen the two flat head
screws beneath the battery slot. Lift the driver figure to provide enough clearance for the battery pack to slide in or out.

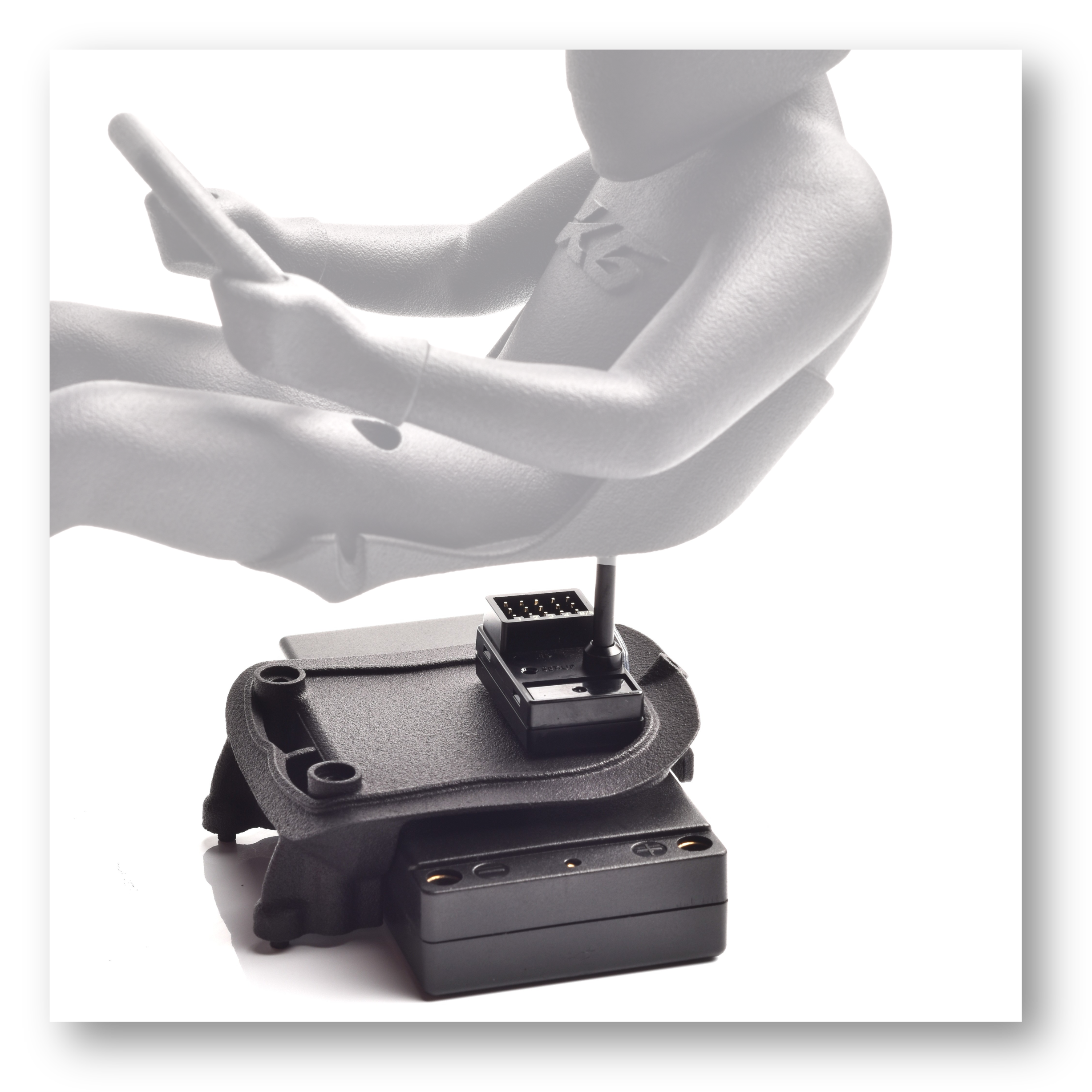

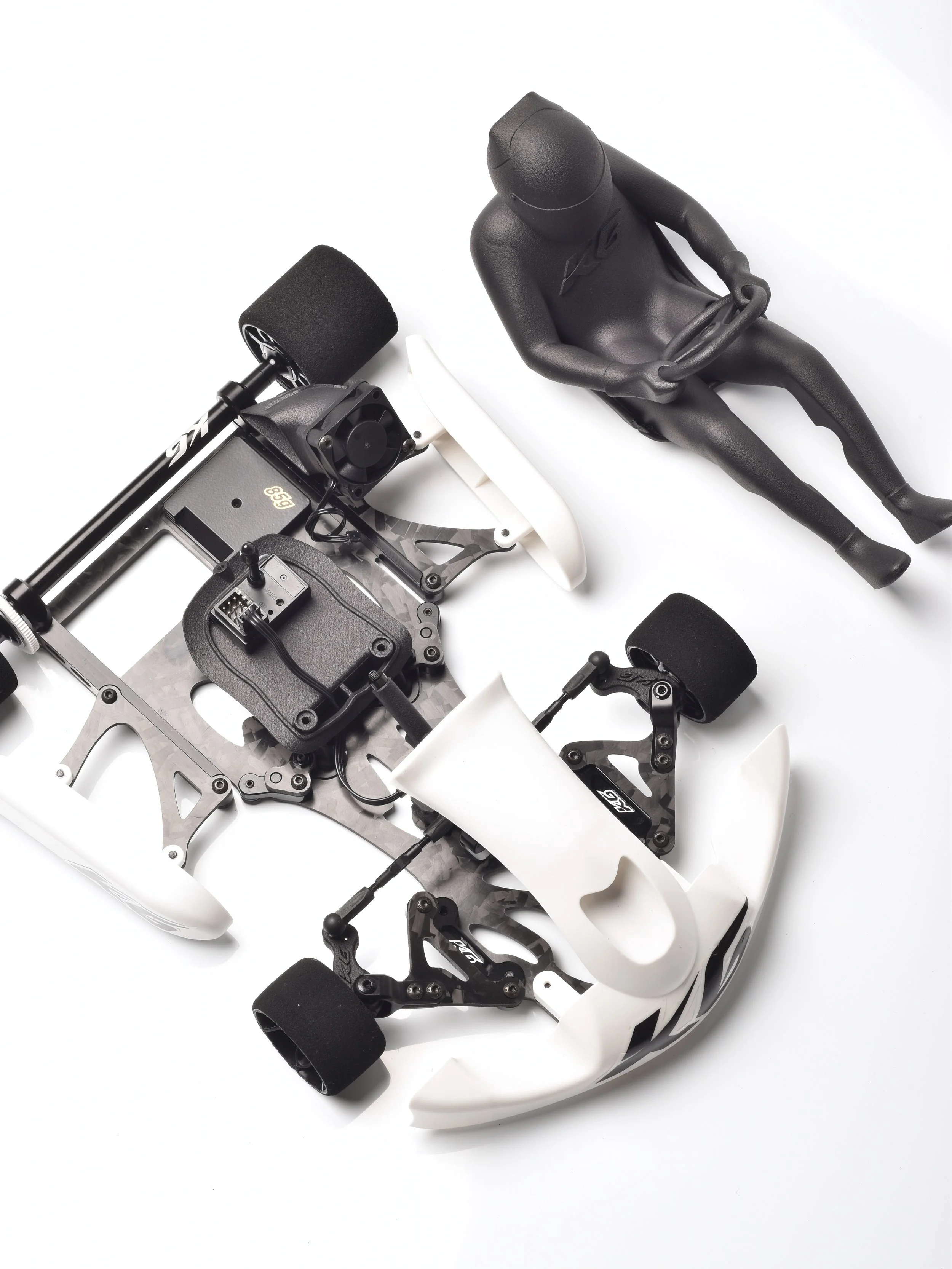

The integrated radio box is concealed within the driver figure, providing a clean appearance while securely housing the receiver and electronics. The driver also serves as actuator for the pitching damper assembly, combining multiple functions into a compact, innovative design

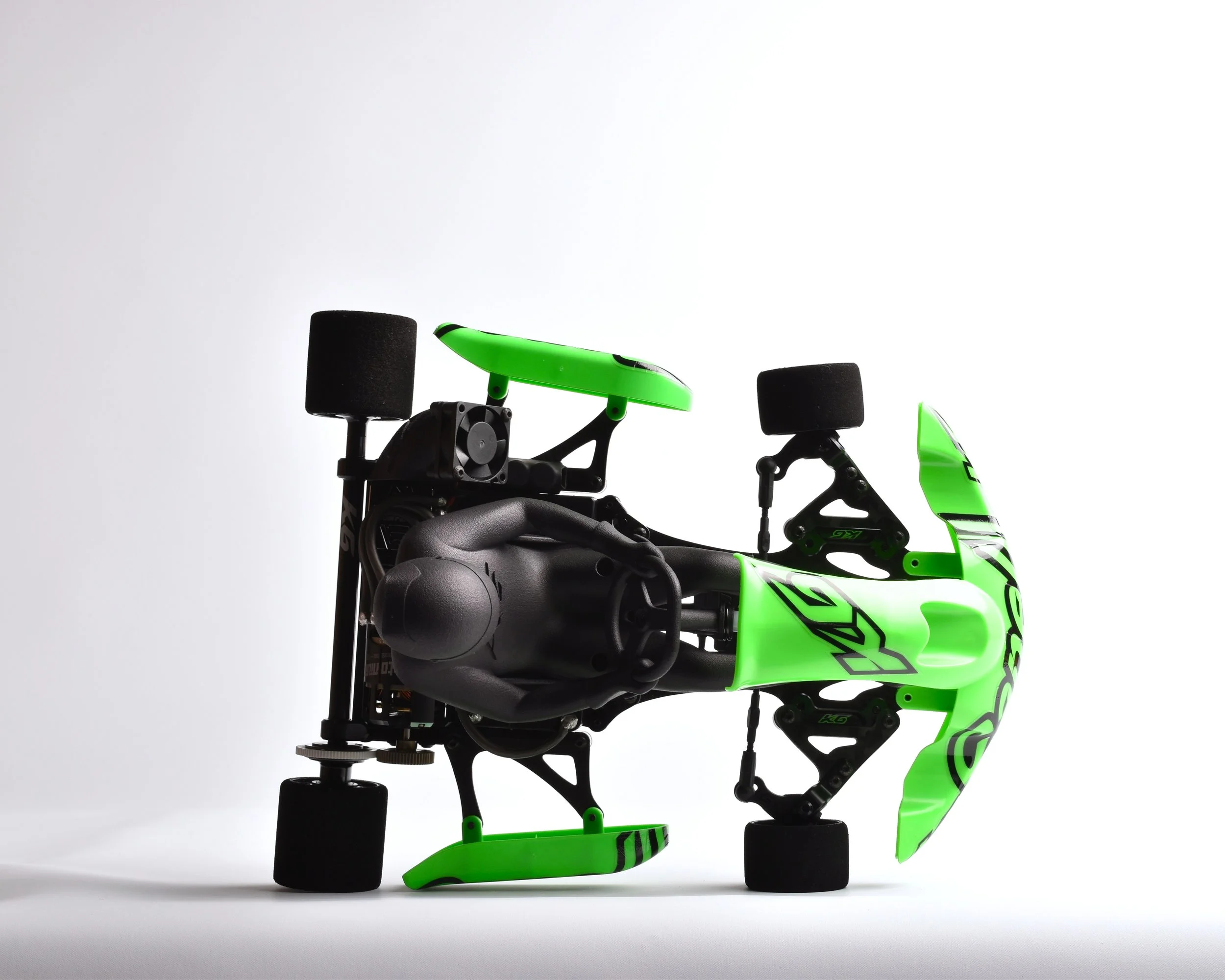

The K6 incorporates a functional 30mm cooling fan duct that channels airflow over the esc and motor.
Inspired by the radiator location
on a full sized kart, the duct improves cooling efficiency
and helps maintain reliable
operating temperatures.

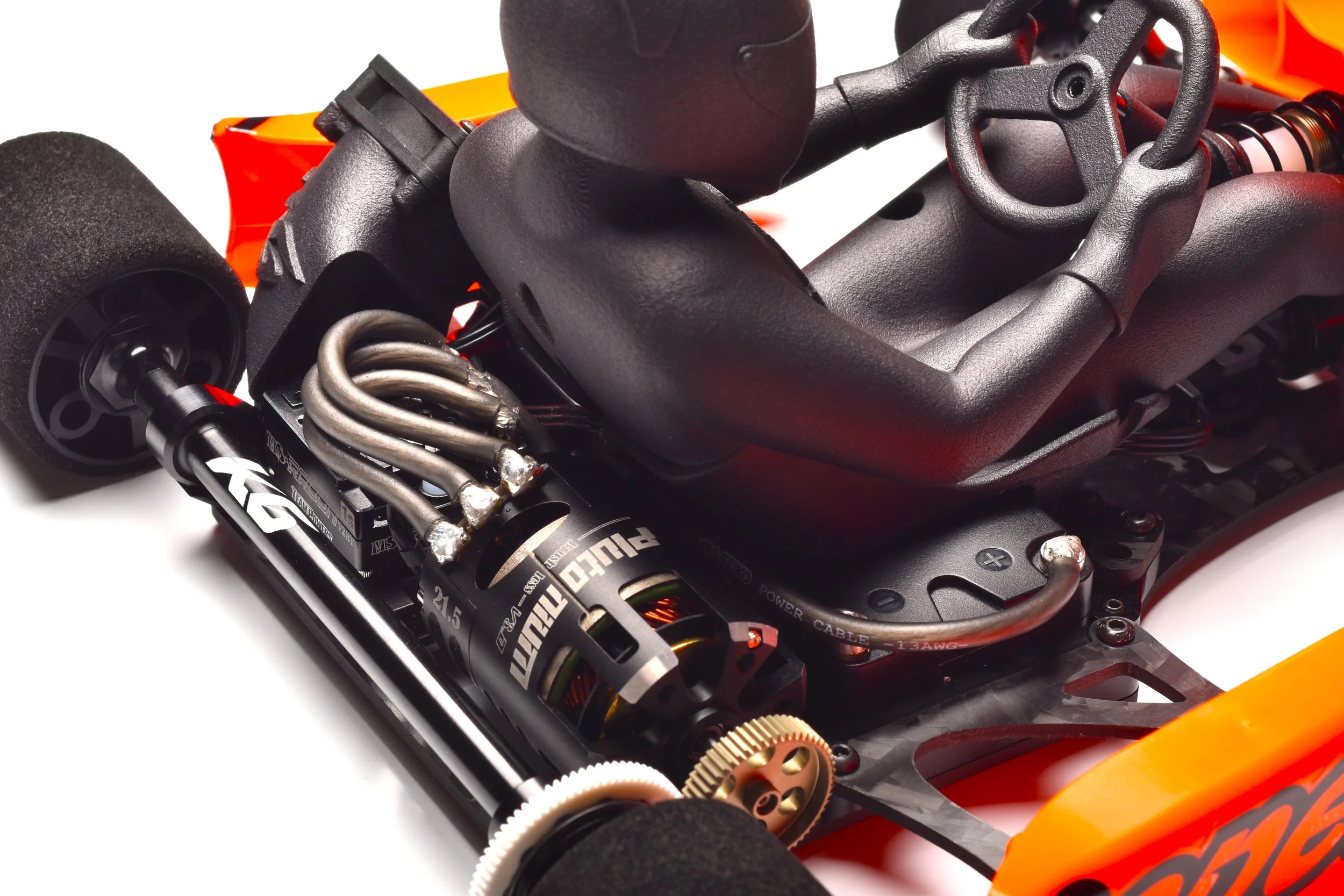

Designed around the standard 540-size motor, the K6 supports both 1S and 2S power systems, with 2S operation ideally paired with a 21.5T motor. The inline motor and ESC layout positions the electronics close to the rear axle, centralising mass to maximise rear grip and optimise handling.

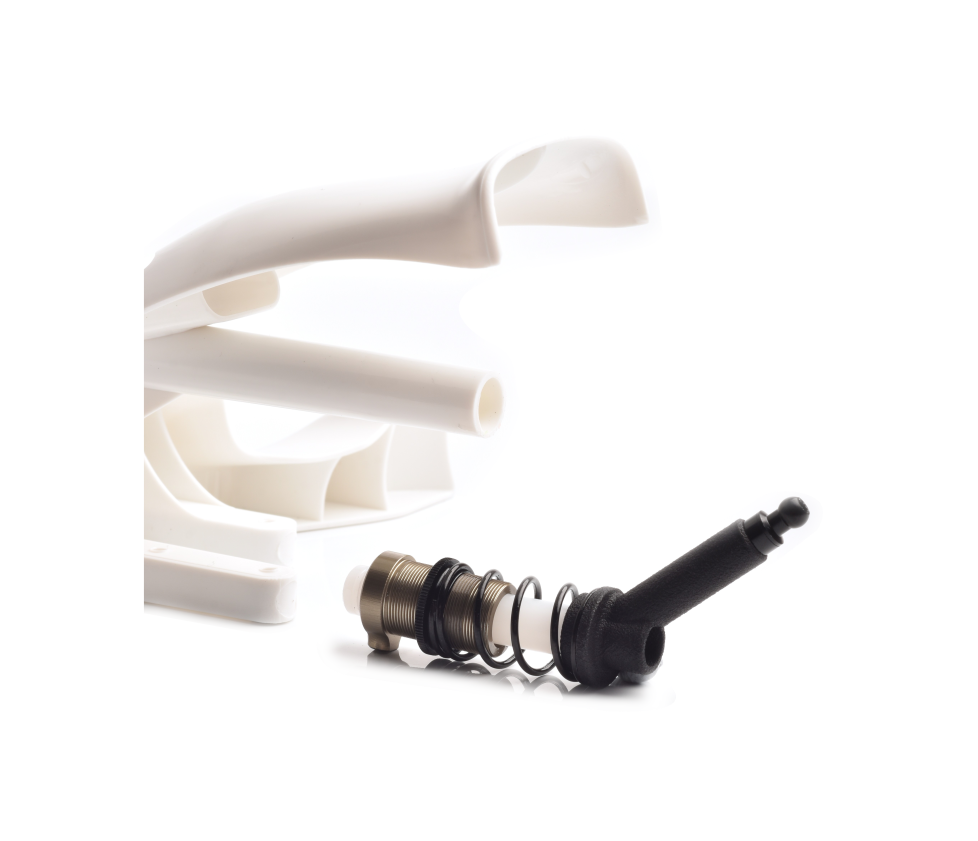

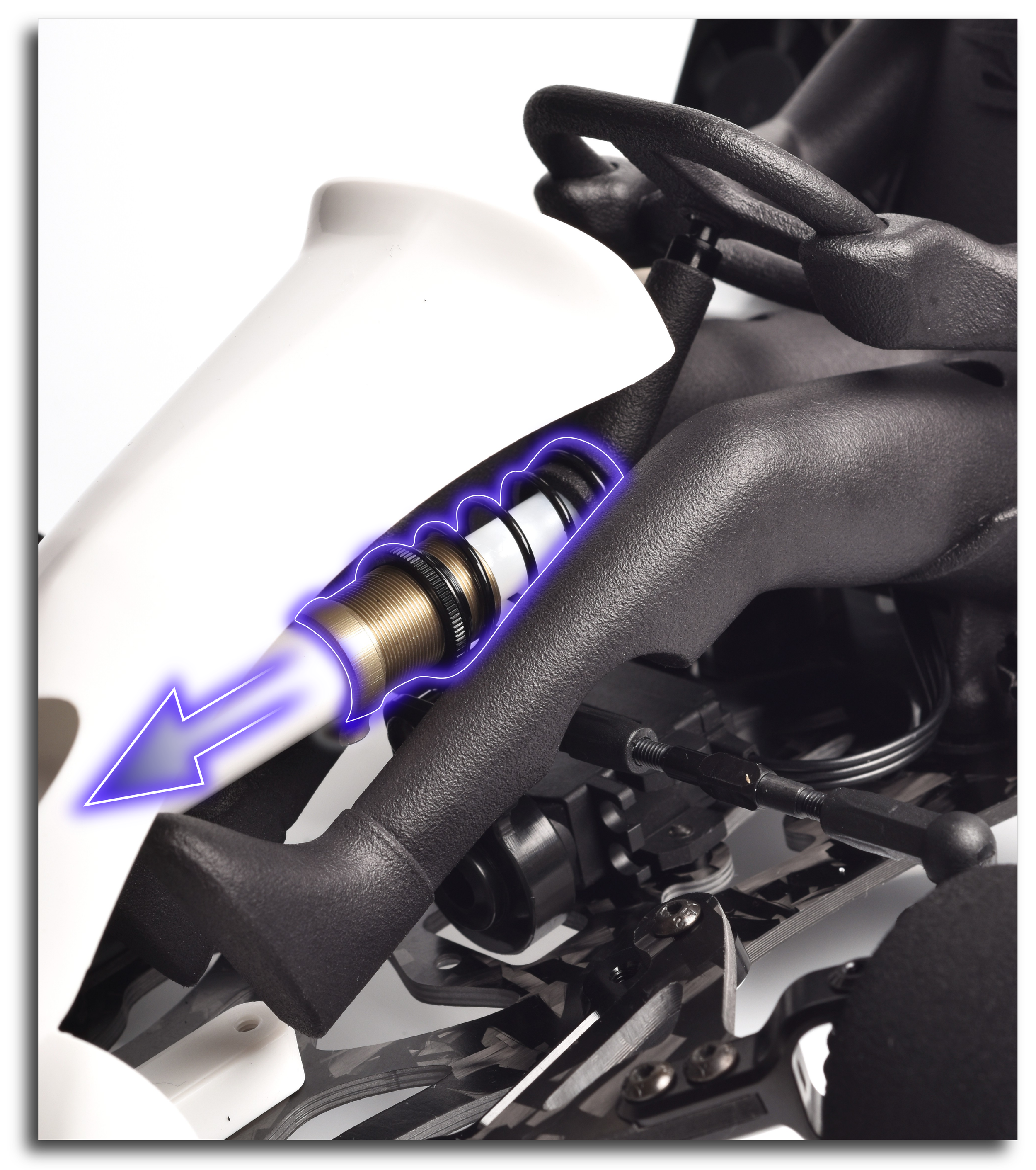

A pitch damper system controls chassis rotation (pitch) around the centre pivot. It plays a critical role in rear traction, corner entry stability, and overall chassis
response. Proper tuning of
this system allows the
kart to be adjusted
for different
track conditions
and driving
styles.

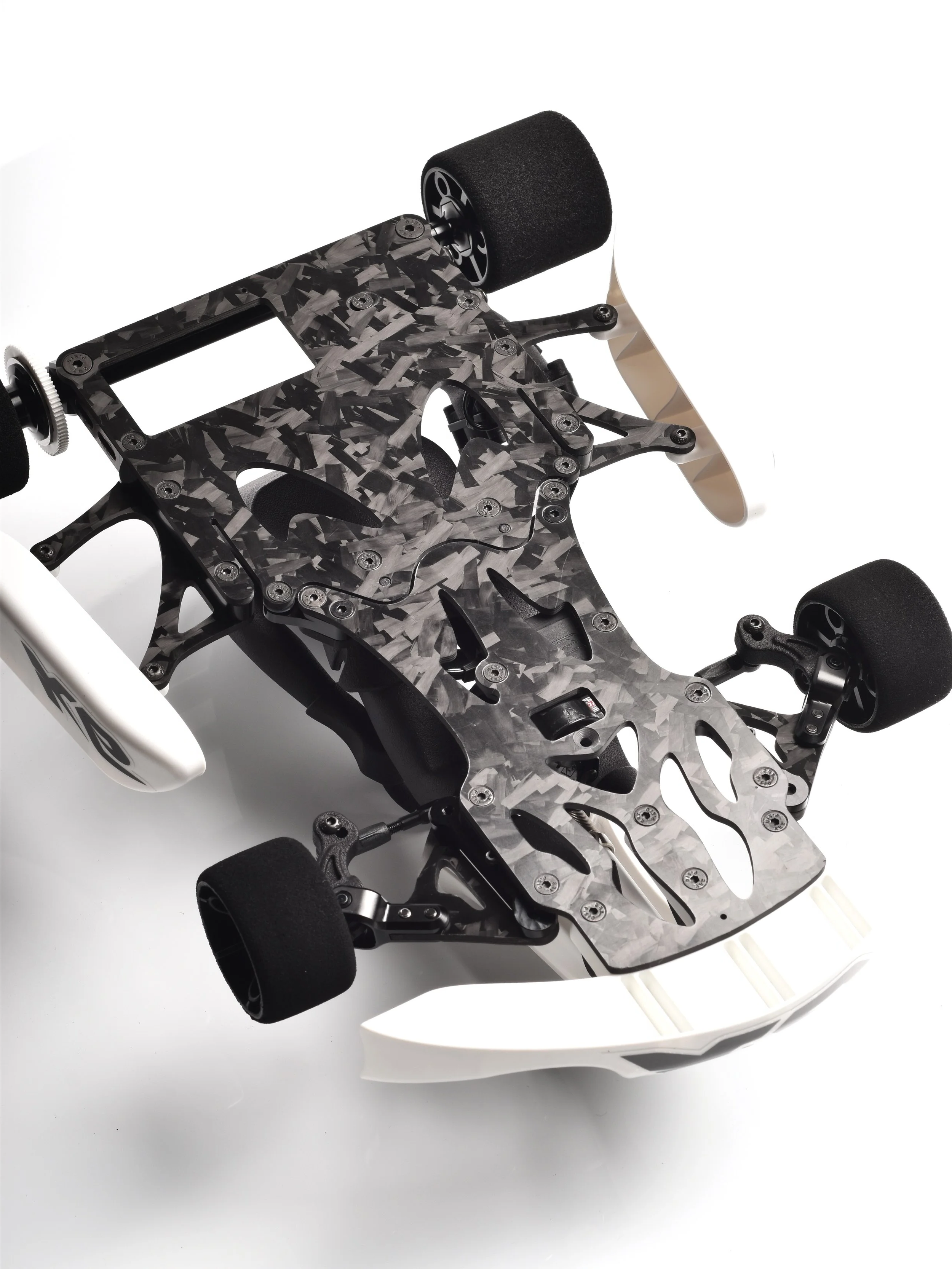

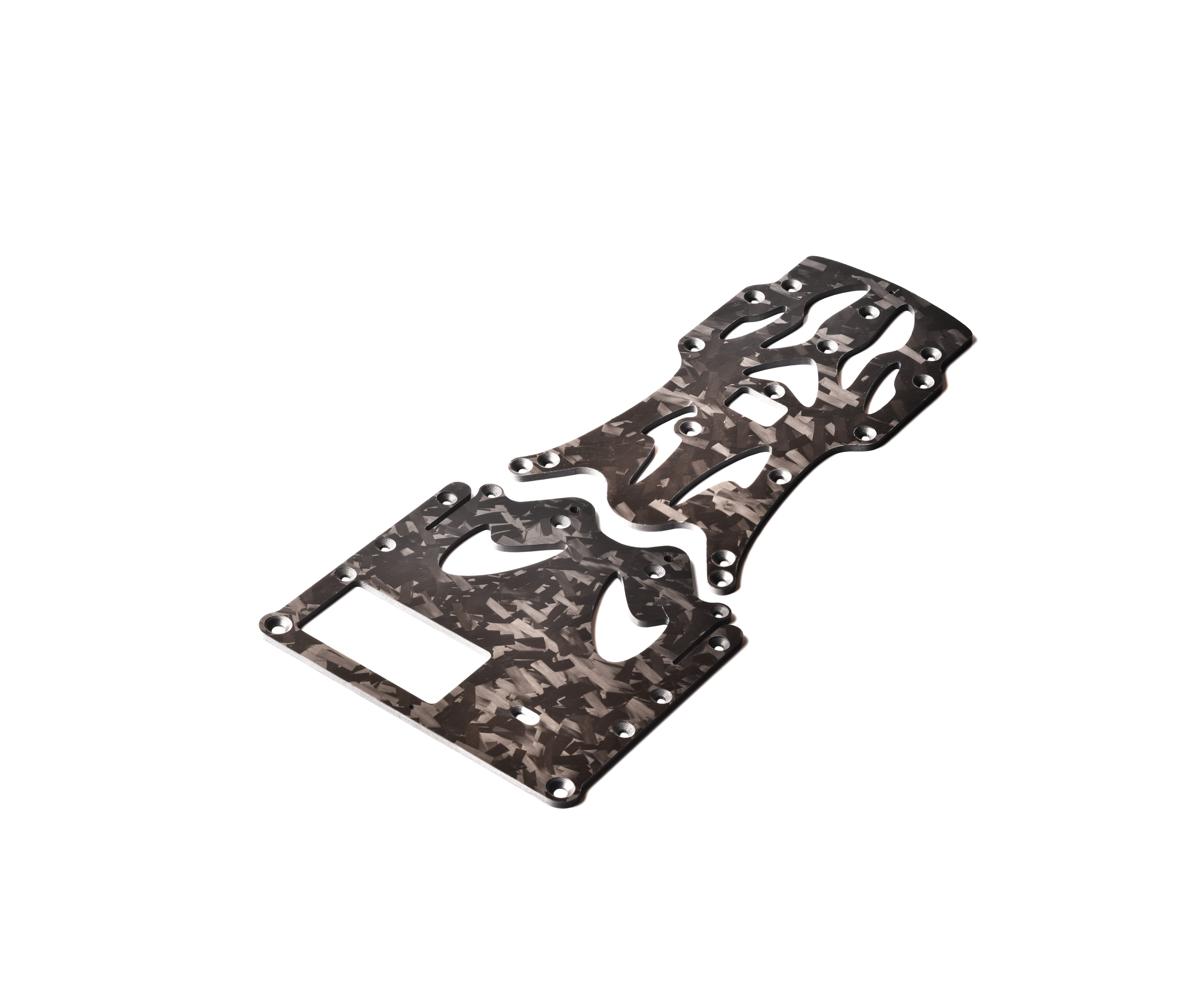

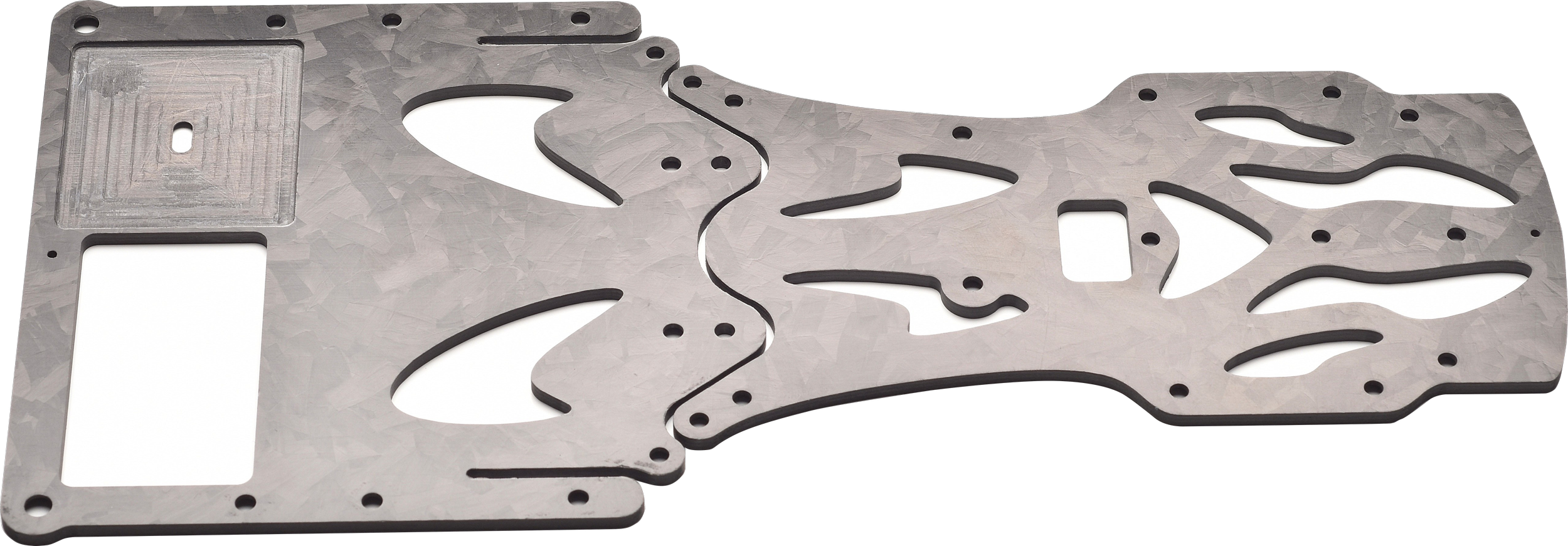

Two-piece forged carbon chassis designed around a central pivot for the pitching damper system. This chassis architecture allows the front and rear chassis sections to articulate independently, improving mechanical grip while maintaining exceptional stiffness and compliance.

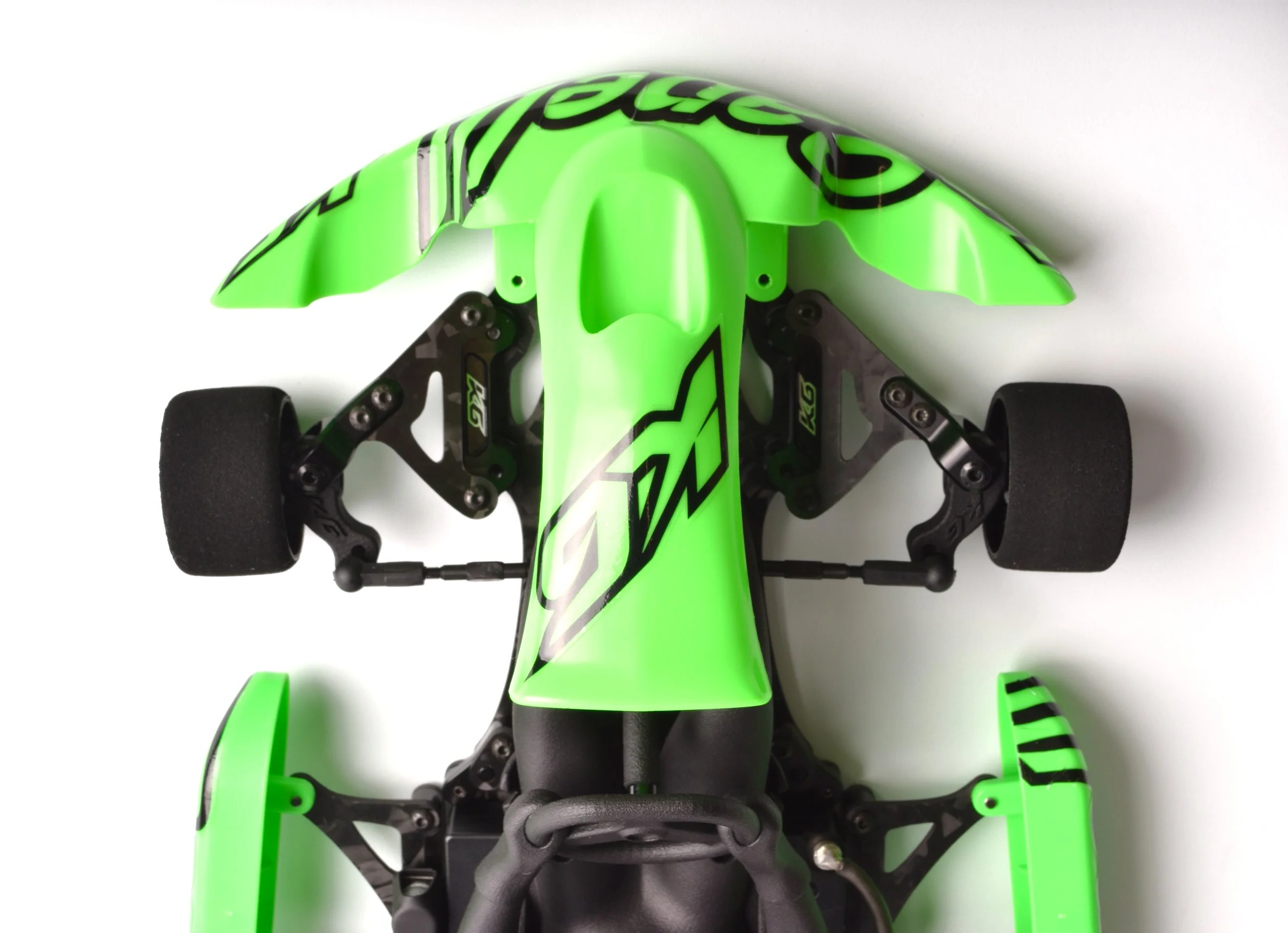

Fully adjustable front-end geometry. Camber, caster, roll centre, ride height, toe and Ackermann can all be independently tuned to optimise steering response, cornering balance and overall
handling.

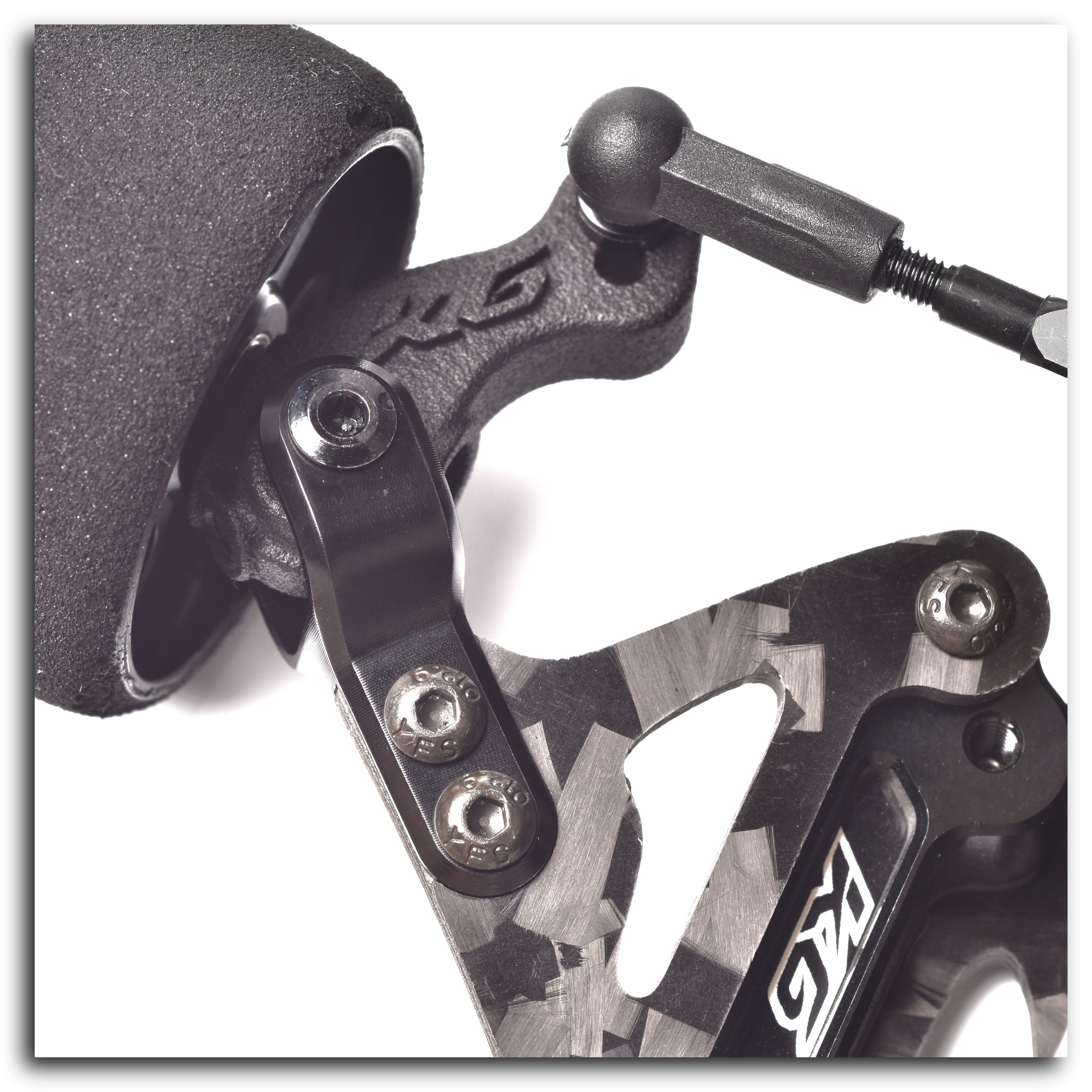

An eccentric kingpin provides quick and precise front camber adjustment by altering the stub axle angle relative to the chassis. Simply rotating the kingpin within the steering knuckle changes the camber setting, allowing accurate tuning to suit different track conditions and handling preferences.
K6 PRODUCT OVERVIEW [CLICK HERE]

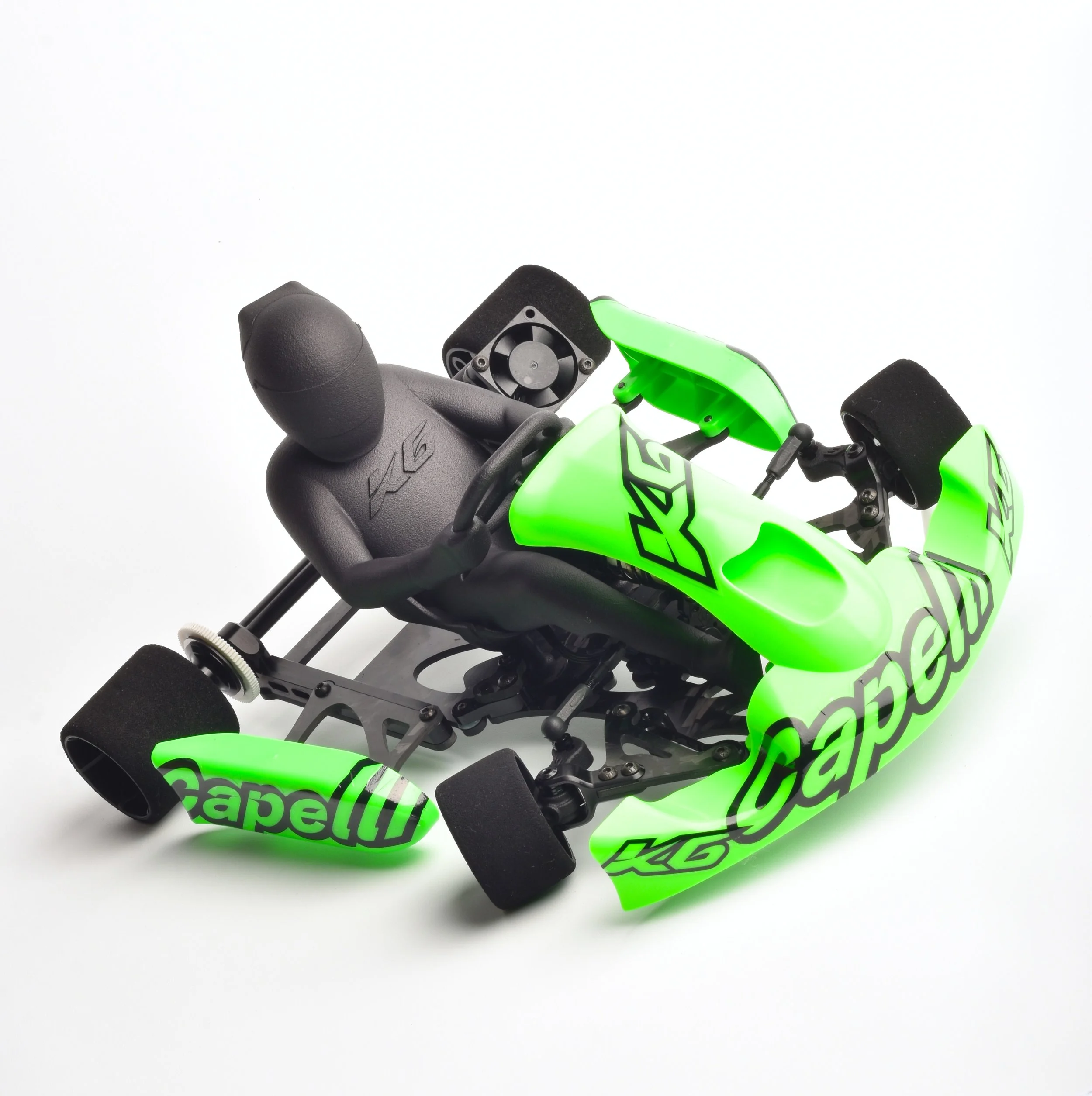

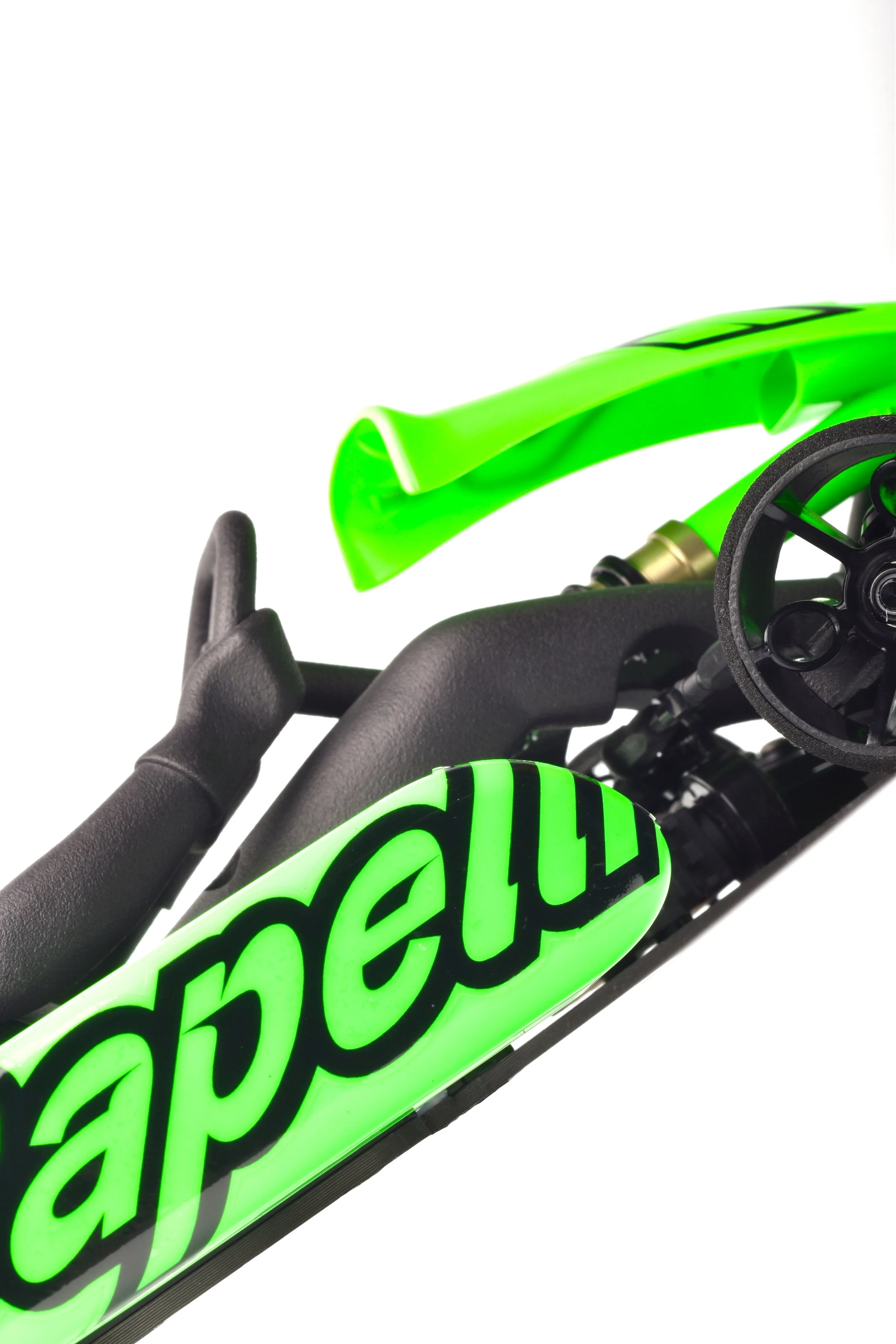

The K6 Venturi Fairing set is available in a range of colours: Black, Green, Neon Yellow, Orange, Pink, Teal and White
Please select colour from available options
Included [x1 set] CAPELLI FOAM Tyres:
#CR00FF-PH / Purple HARD (PRE-TRUED)
#CR00FR-PSS / Purple SUPER SOFT (PRE-TRUED)
This is a ‘rolling chassis’ kit. The following items are essential for the kart to operate:
Required Electronics & Running Gear
64 Pitch (64P) Spur Gear - Compatible with your chosen final drive ratio.
64 Pitch (64P) Pinion Gear - Select tooth count to suit track conditions and motor setup.
540 Size Electric Motor - Standard 540 can motor or brushless equivalent.
Micro Servo (Chassis Mount Type) - Ensure compatibility with chassis servo mounting points.
2-Channel Radio System - Includes transmitter and receiver.
LiPo Battery (Shorty Type) - 1s or 2s Designed to fit the chassis battery tray.
Compatible ESC (with Blinky Function) - 1s or 2s for regulated racing classes where applicable.
30mm Cooling Fan (for ESC) - Recommended to maintain safe ESC operating temperatures.
Assembly Consumables
Double-Sided Tape - For mounting electronics securely.
Silicone Damper Oil - For damper performance tuning.
Silicone Differential Grease - Ensures smooth ball differential operation.
Foam Tyre Glue - For securing tyres to rims.
Molybdenum Grease (for Thrust Bearing) - Reduces wear and improves bearing performance.
Low-Strength Threadlock - Required for metal-to-metal screws to prevent loosening.
Setup & Tyre Preparation Equipment
Tyre Truer - For precise tyre diameter and surface preparation.
Set-Up Station (1/10 chassis type) - Essential for accurate suspension geometry setup (camber, caster & toe)
Straight Edge Device - Useful for chassis tweak and alignment checks.

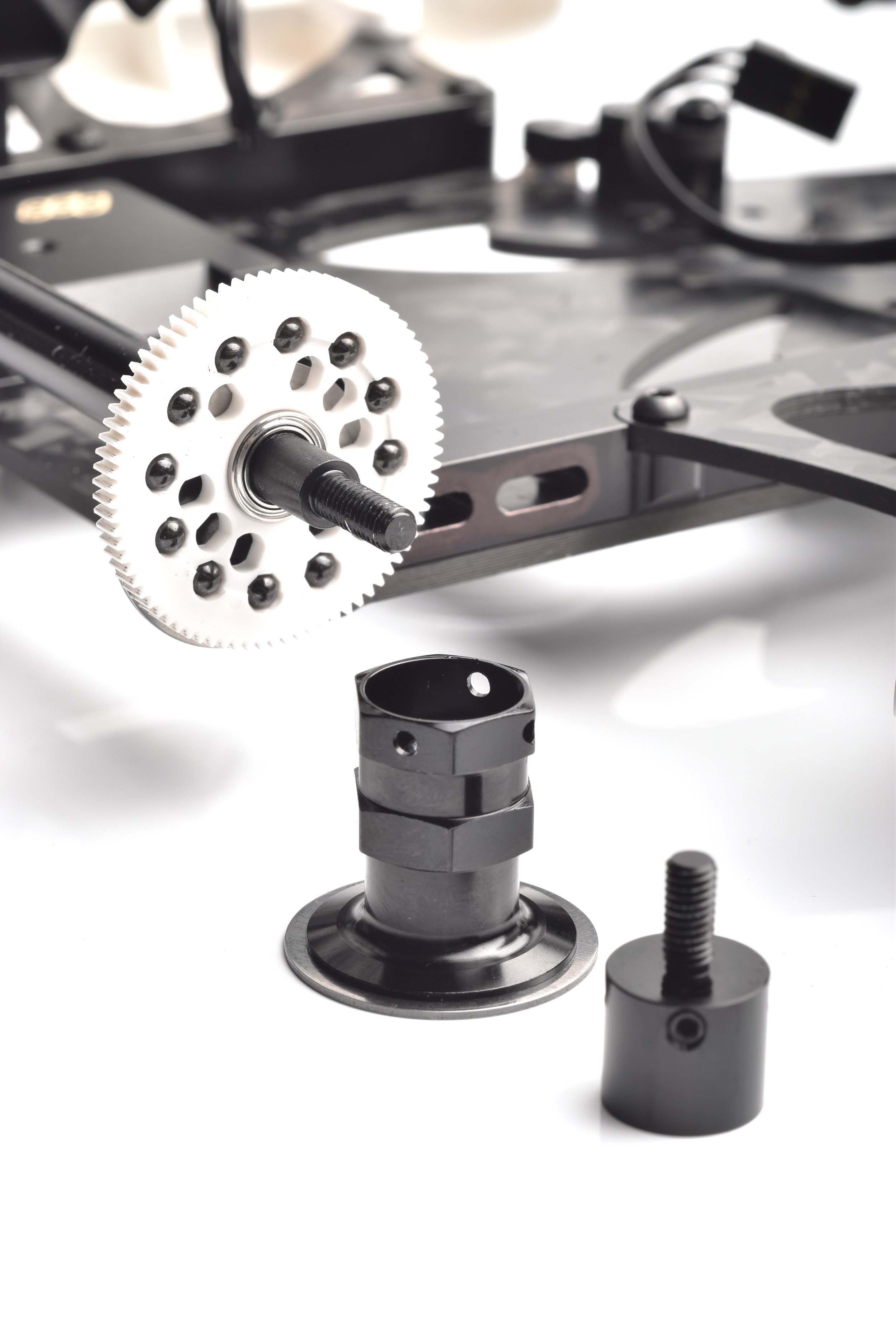

The K6 comes standard with an adjustable ball differential, allowing the level of slip between the rear wheels to be precisely tuned, enabling the kart's traction, cornering characteristics and power delivery to be optimised for different track conditions
FAIRINGS AVAILABLE IN A RANGE OF COLOURS: ORANGE - TEAL - BLACK - GREEN - NEON YELLOW - PINK - BLACK - WHITE -
FAIRINGS AVAILABLE IN A RANGE OF COLOURS: ORANGE - TEAL - BLACK - GREEN - NEON YELLOW - PINK - BLACK - WHITE -

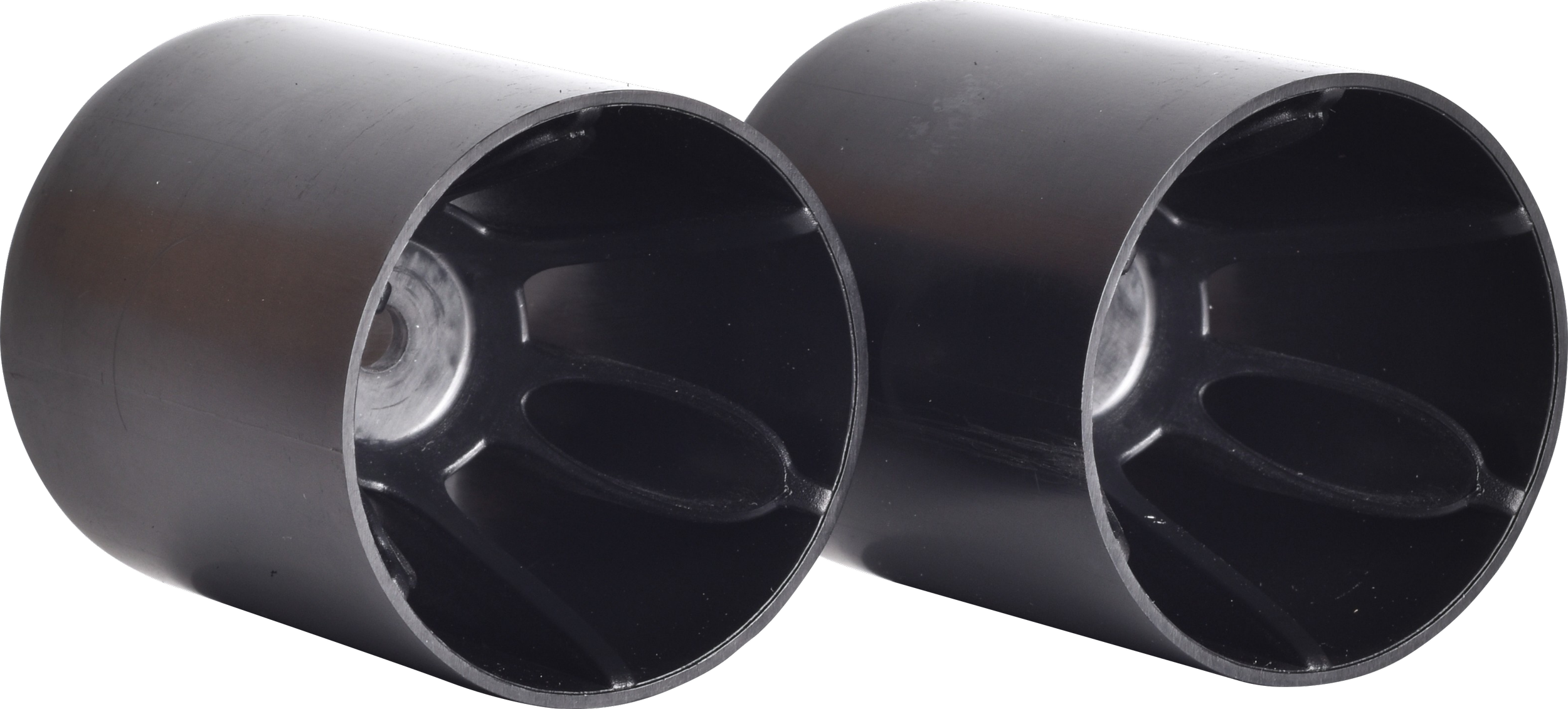

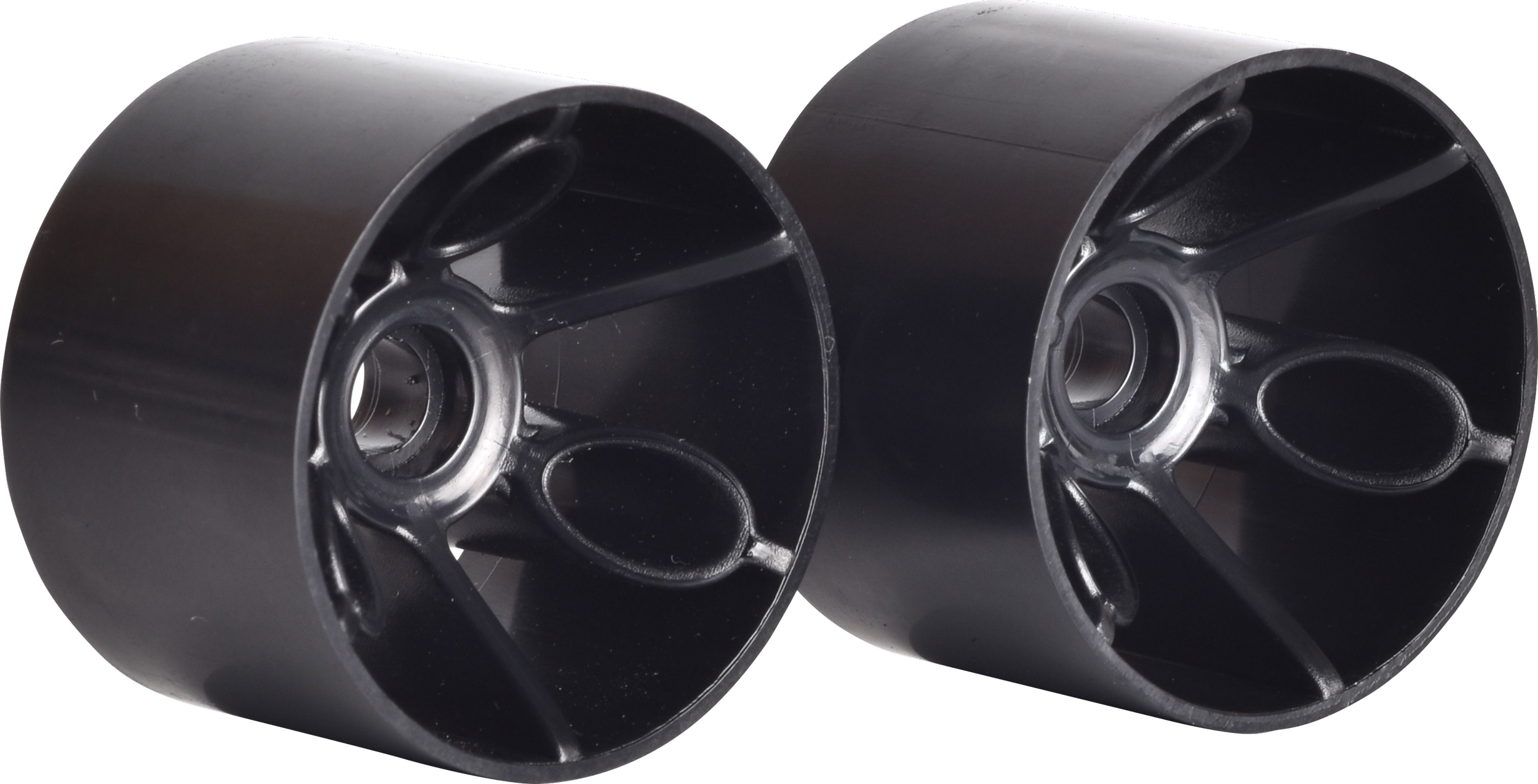

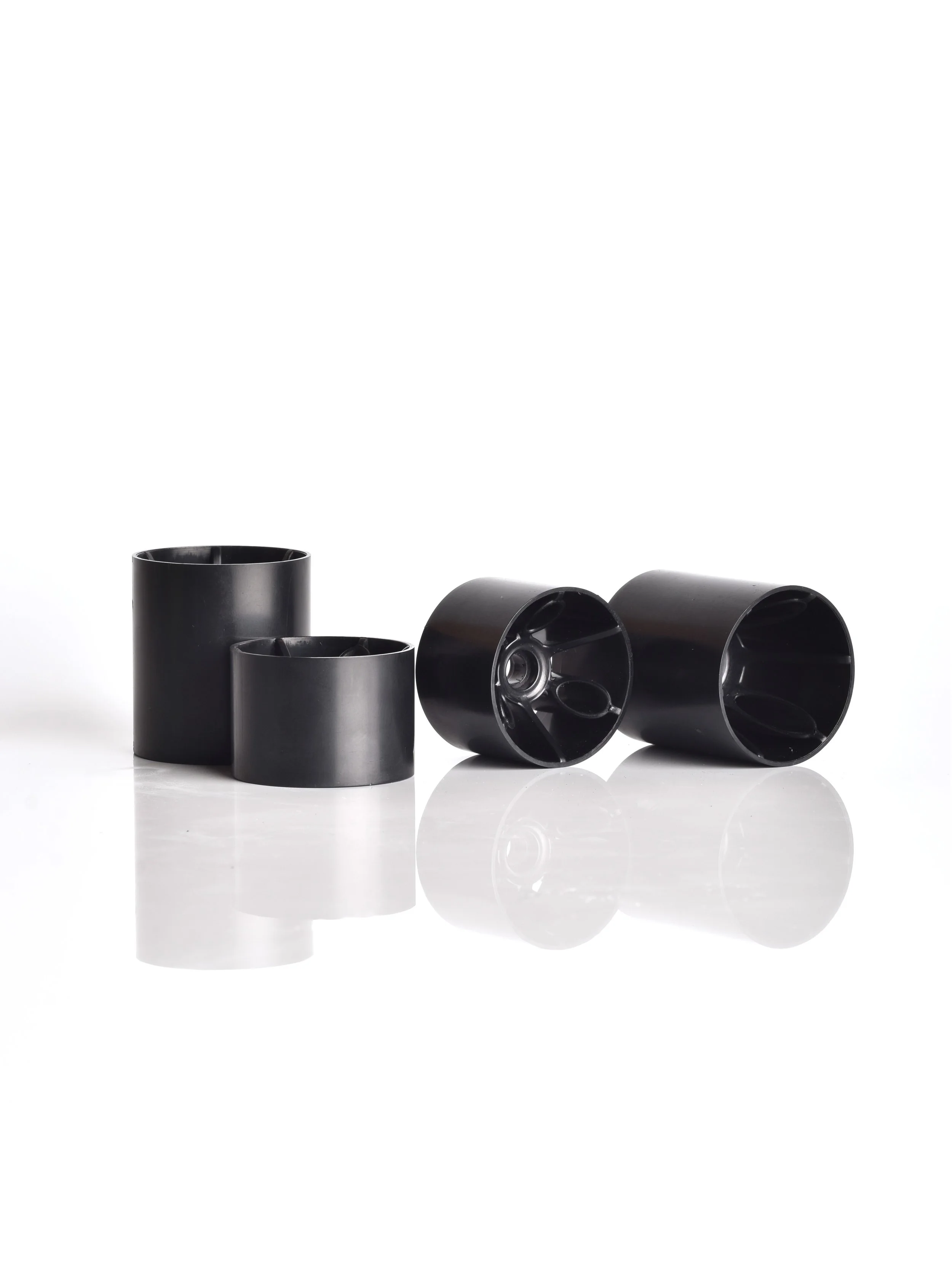

The K6 wheels feature a distinctive scale-inspired design, combining the iconic look of the three-bolt pattern of a full-size kart with styling cues from the legendary Lamborghini Teledial wheel. The result is a lightweight wheel that delivers an authentic and unmistakable appearance.
CAPELLI RACING FOAM TYRES - OFFERING K6 & 1/12 PAN-CAR USERS SUPERIOR PEFORMANCE ON ANY SURFACE
CAPELLI RACING FOAM TYRES - OFFERING K6 & 1/12 PAN-CAR USERS SUPERIOR PEFORMANCE ON ANY SURFACE

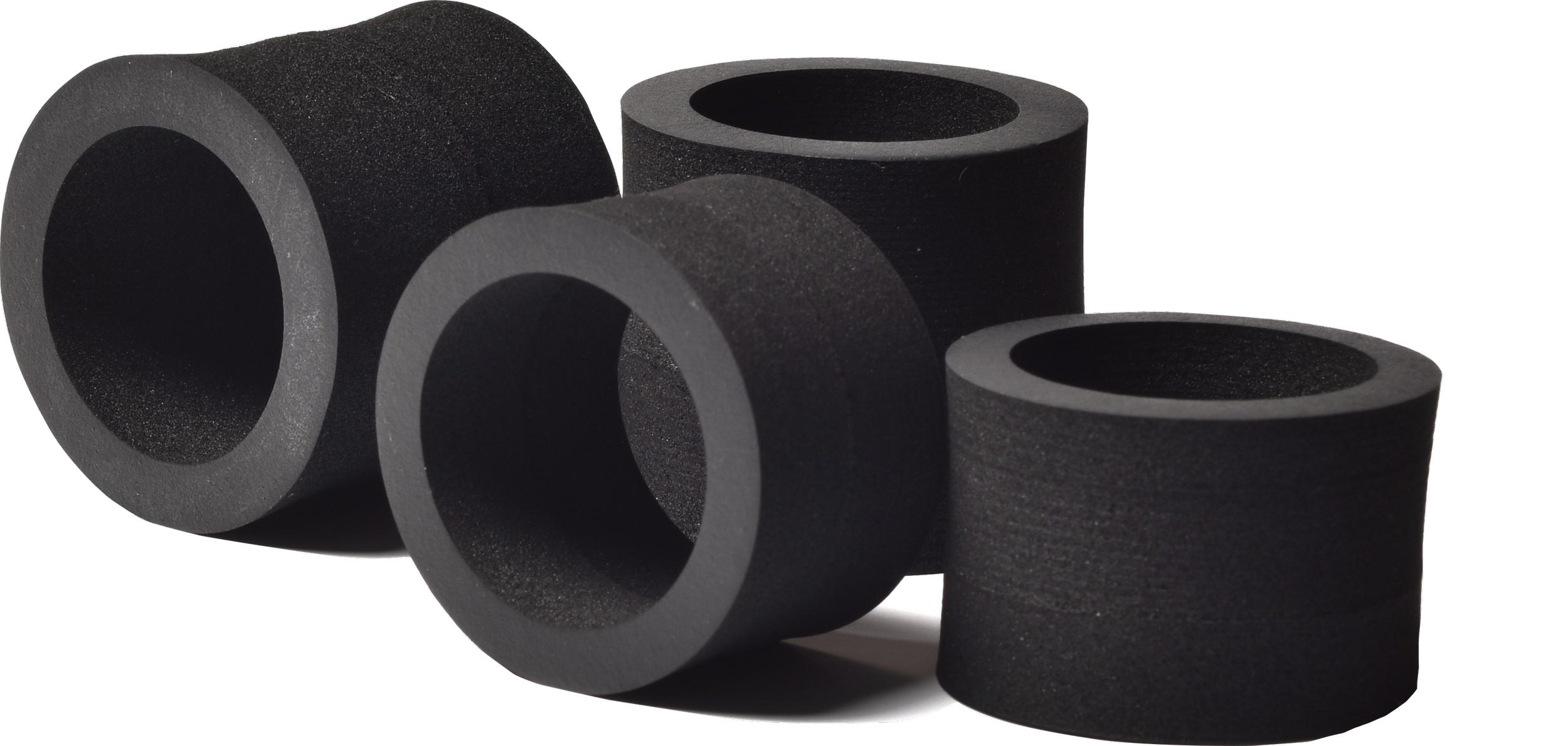

The K6 is supported by a selection of premium foam tyre compounds, specifically developed for carpet, asphalt and low-grip asphalt tracks. Each compound is engineered to deliver optimum grip, consistency and handling
The K6 has been designed with continuous development in mind. A growing range of genuine option parts is available to fine-tune performance, improve durability, and tailor the chassis to different driving styles and track conditions.
![CR0005 - CAPELLI K6 Front chassis plate 2.0mm ALU 7075-T6 [OPTION]](https://images.squarespace-cdn.com/content/v1/6632b5f200093809c9bf28bb/eada8c46-c193-4a65-b03c-994384df0381/DSC_0754.JPG)
#CR0005
Aluminium Front chassis plate for K6, ALU chassis plate offers reduced torsional flex over the Carbon version
- 2.0mm THK
- 7075-T6 Aluminium
- Black anodised matte finish
![CR0008 - CAPELLI K6 Balance mass front 15g [OPTION]](https://images.squarespace-cdn.com/content/v1/6632b5f200093809c9bf28bb/b63bd762-0ef9-4d23-96fe-b33fad05ca1b/DSC_0509.JPG)
#CR0008

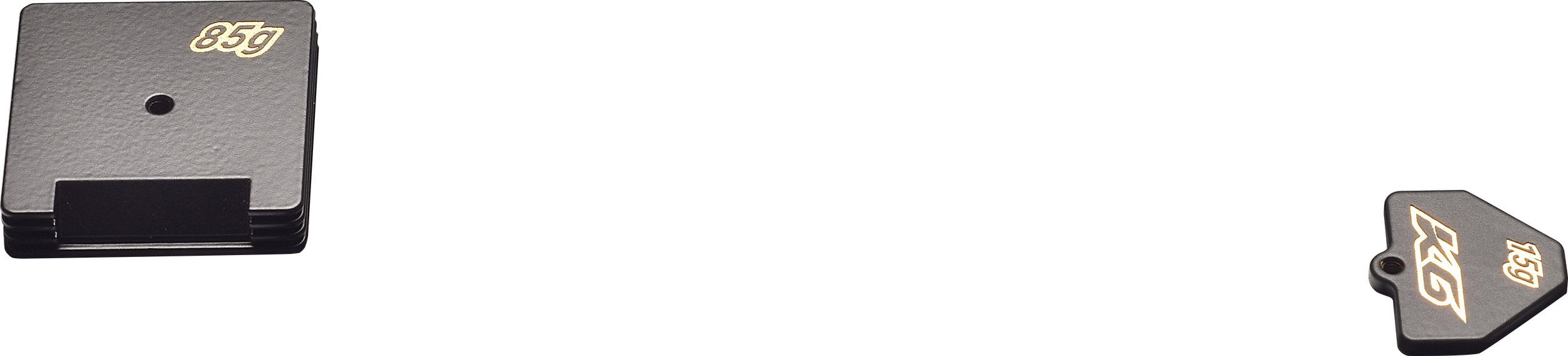

Front balance mass for front end of K6
- Weight 15g
- BRASS
- Black Electro coated finish
![CR0020 - Fan duct dual 25mm Nylon [OPTION]](https://images.squarespace-cdn.com/content/v1/6632b5f200093809c9bf28bb/7dd6b4f0-64d7-42f6-a60c-7bf28a19fa8d/DSC_0545.JPG)
#CR0020
- Option Dual Fan duct for Capelli K6
- x2 5v 25mm Fans required
- HARD Nylon
*x2 - 25mm Fans not included

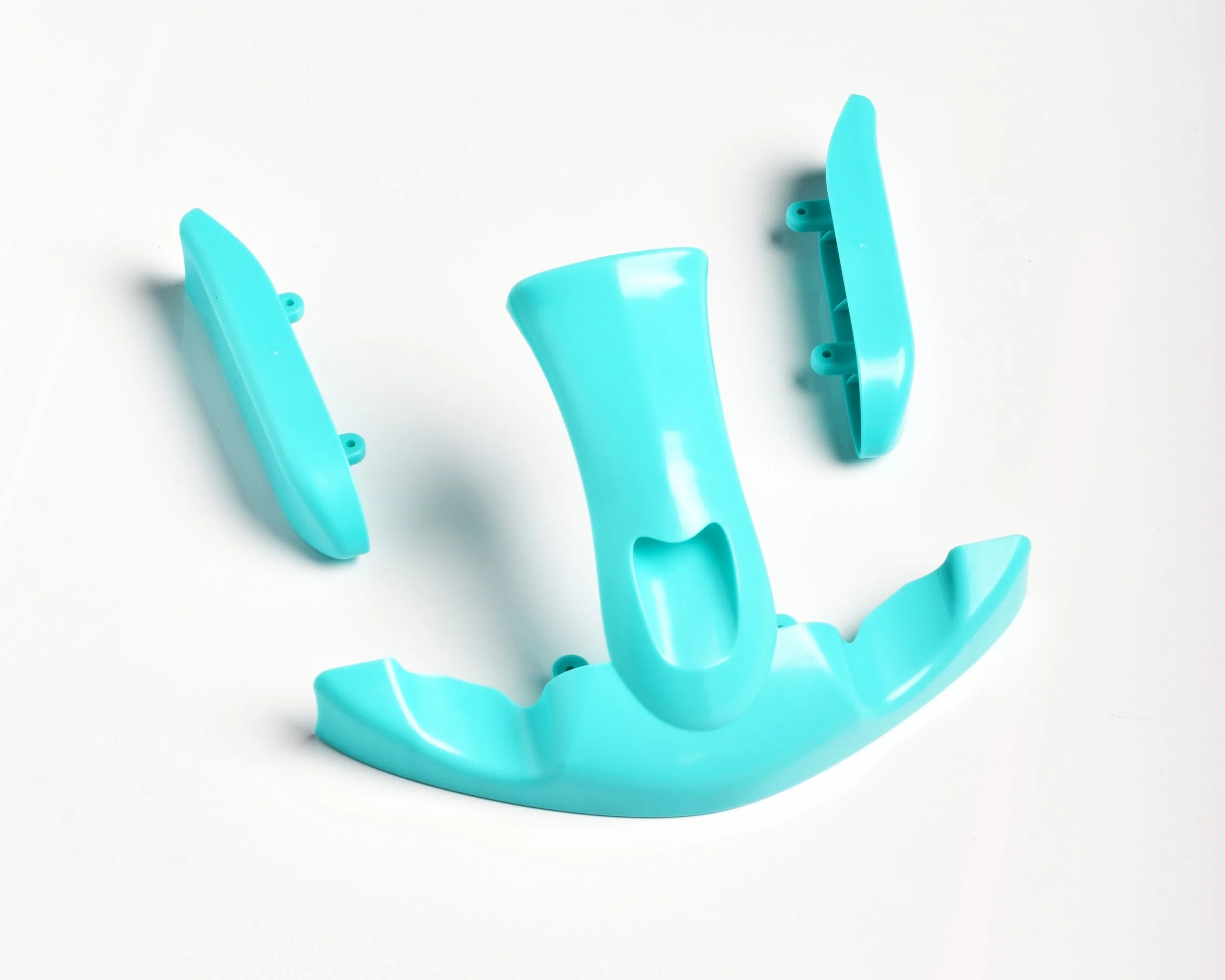

#CR00VF
Venturi fairing set for K6
Includes:
- x1 #CR0014 Nose fairing 508 Venturi ABS
- x1 #CR0015-L Side pod 508 LH ABS
- x1 #CR0015-R Side pod 508 RH ABS

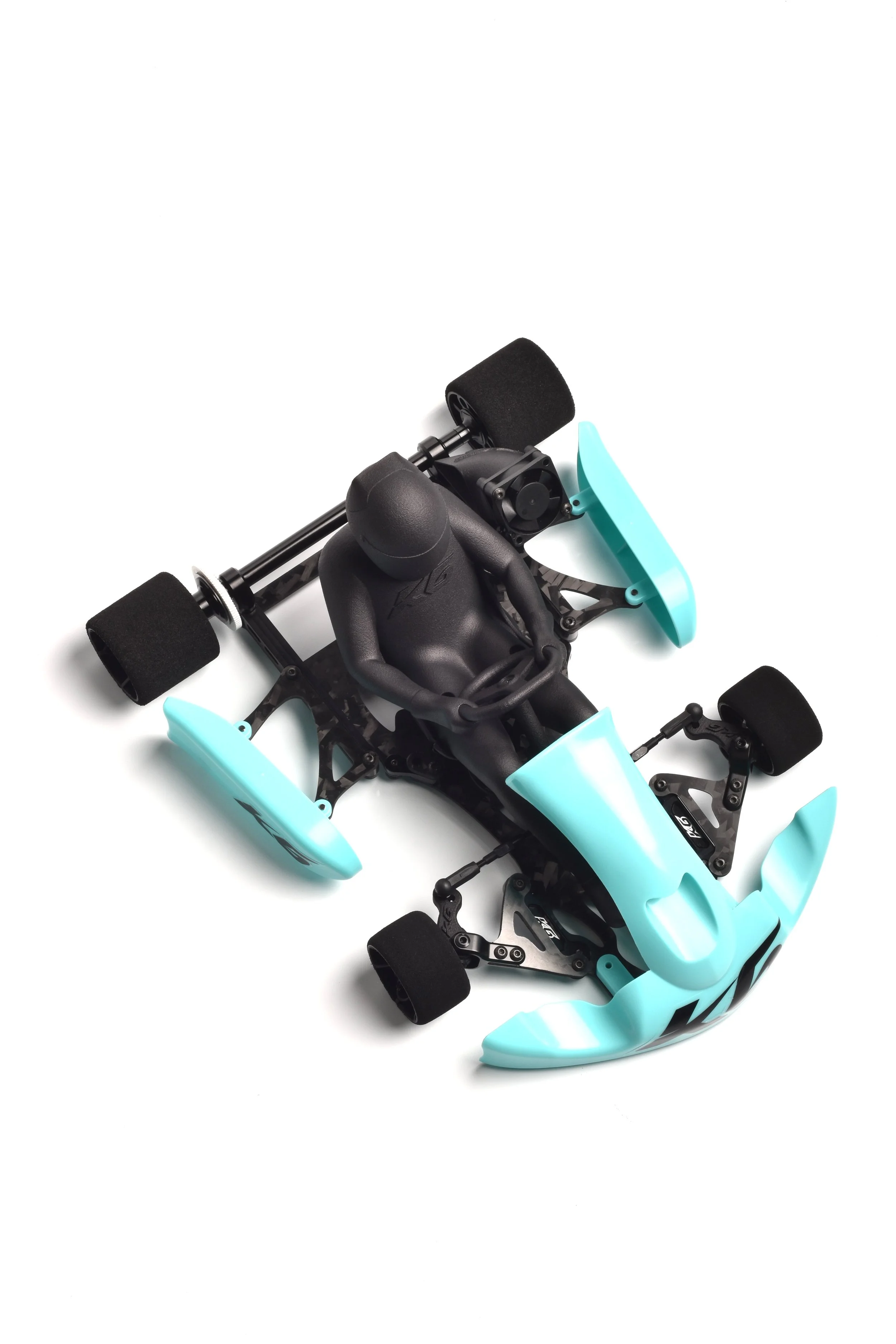

The K6 Venturi Fairing set is available in a range of colours: Black, Green, Neon Yellow, Orange, Pink, Teal and White
Please select colour from available options
